0×00. 事件回顾


在2015年的12月18日,Juniper官网发布安全公告,指出在他们的Netscrren防火墙的ScreenOS软件中发现未授权的代码,其中涉及2个安全问题,一个是在VPN的认证代码实现中被安放后门,允许攻击者被动解密VPN的流量(CVE-2015-7756),另一个后门是允许攻击者远程绕过SSH和Telnet认证,利用后门密码远程接管设备(CVE-2015-7755).在Juniper的安全公告后的6个小时,Fox-IT公司找到了后门密码,并发布了Sort规则

通过Sort规则我们可以看出SSH/Telnet的后门密码是"<<< %s(un='%s') = %u" (3c3c3c20257328756e3d2725732729203d202575十六进制解码)

Sort规则:

alert tcp $HOME_NET 23 -> any any (msg:"FOX-SRT - Flowbit - Juniper ScreenOS telnet (noalert)"; flow:established,to_client; content:"Remote Management Console|0d0a|"; offset:0; depth:27; flowbits:set,fox.juniper.screenos; flowbits:noalert; reference:cve,2015-7755; reference:url,http://kb.juniper.net/JSA10713; classtype:policy-violation; sid:21001729; rev:2;)
alert tcp any any -> $HOME_NET 23 (msg:"FOX-SRT - Backdoor - Juniper ScreenOS telnet backdoor password attempt"; flow:established,to_server; flowbits:isset,fox.juniper.screenos; flowbits:set,fox.juniper.screenos.password; content:"|3c3c3c20257328756e3d2725732729203d202575|"; offset:0; fast_pattern; classtype:attempted-admin; reference:cve,2015-7755; reference:url,http://kb.juniper.net/JSA10713; sid:21001730; rev:2;)
alert tcp $HOME_NET 23 -> any any (msg:"FOX-SRT - Backdoor - Juniper ScreenOS successful logon"; flow:established,to_client; flowbits:isset,fox.juniper.screenos.password; content:"-> "; isdataat:!1,relative; reference:cve,2015-7755; reference:url,http://kb.juniper.net/JSA10713; classtype:successful-admin; sid:21001731; rev:1;)
alert tcp $HOME_NET 22 -> $EXTERNAL_NET any (msg:"FOX-SRT - Policy - Juniper ScreenOS SSH world reachable"; flow:to_client,established; content:"SSH-2.0-NetScreen"; offset:0; depth:17; reference:cve,2015-7755; reference:url,http://kb.juniper.net/JSA10713; classtype:policy-violation; priority:1; sid:21001728; rev:1;)

0×01. 受CVE-2015-7755后门影响的Juniper设备型号


根据Juniper的安全公告提及,版本6.2.0r15到6.2.0r18和6.3.0r12到6.3.0r20受影响,Juniper提供了新的6.2.0和6.3.0build下载,也对去除后门的版本进行了重打包,标识为'b',如ssg500.6.3.0r12b.0.bin和ssg5ssg20.6.3.0r19b.0.bin.老外对CVE-2015-7756和CVE-2015-7755受影响的Juniper设备版本做了一个图示,如图1 (虽然我个人认为他标记2个CVE标记反了)

enter image description here

图片引用自http://malwarejake.blogspot.tw/

0×02. 技术分析:


这里只参考hdm的文章分析发现CVE-2015-7755后门漏洞的过程,CVE-2015-7756漏洞涉及很多密码学的知识,我随后发布.

hdm已经把firmware打包放在了https://github.com/hdm/juniper-cve-2015-7755,其中 SSG500固件是使用x86架构, SSG5和SSG20固件使用XScale (ARMB) 架构,这里直接把ssg5ssg20.6.3.0r19.0.bin载入IDA,在"Processor Type"里选择ARMB,如图2

enter image description here

图2

然后修改Loading Address为 0×80000,File Offset为 0×20,如图3

enter image description here

图3

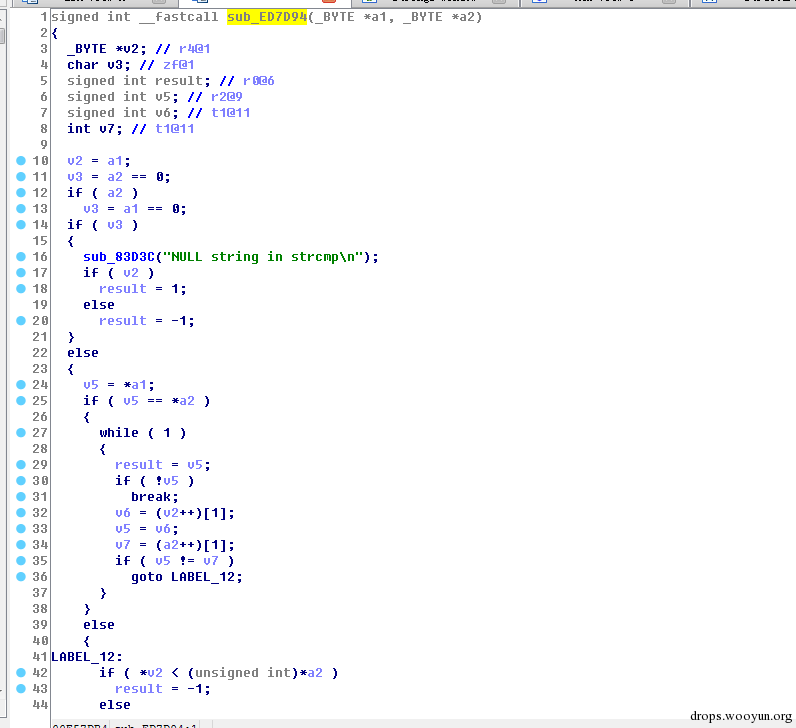

通过字符串参考搜索"strcmp"找到sub_ED7D94函数,但是引用太多,如图4,图5.继续查看字符串参考,发现更有趣的字符如"auth_admin_ssh_special"和“auth_admin_internal",通过"auth_admin_internal"发现sub_13DBEC函数,这个函数有个BL sub_ED7D94,F5看下sub_ED7D94,类似"strcmp",如图6

enter image description here

图4

enter image description here

图5

enter image description here

图6

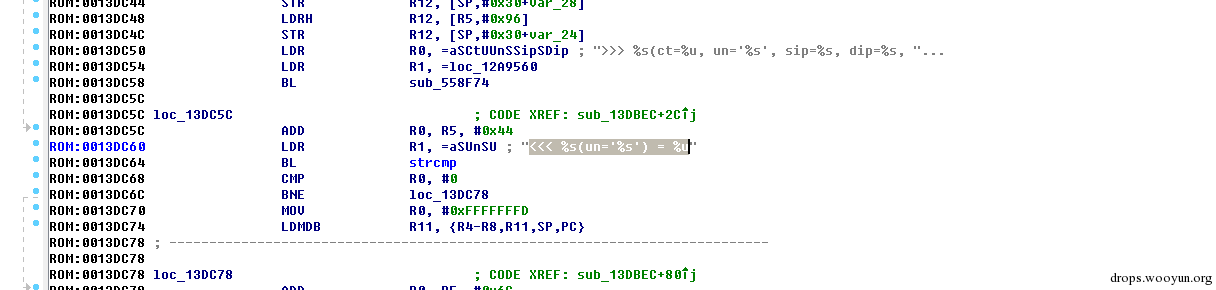

最后确定后门密码为“<<< %s(un='%s') = %u“,如图7

enter image description here

图7

要想利用还需要知道SSH/TELNET登陆名,通过官方文档,我们知道默认登陆名为netscreen,又根据sans 蜜罐的结果https://isc.sans.edu/forums/diary/The+other+Juniper+vulnerability+CVE20157756/20529/,摘录出常用用户名root/admin/,扫描结果见第三部分

0×03. 国内影响:


经过我个人扫描,全球开放juniper的ssh设备有21869台(为了避免麻烦,忽略了一些已知的蜜罐网络和敏感网络的IP段,实际应该更多),其中中国占2008台.根据shodan的热词“netscreen counter:"CN""来看,他得到的中国受影响的IP是2130台.如图8,而其中受后门影响的设备已经验证的有317台.如图9

enter image description here

图8

enter image description here

图9

另外要说的另一个敏感问题是,除了受后门影响的这317台juniper设备,弱口令问题导致可以登陆设备的有20多台,大部分是netscreen/netscreen,这种安全意识问题,还需要网络管理员注意.

管理员可通过get event查看登陆日志.排查是否可以被扫描或登陆

ssg5-serial-> get event
Total event entries = 3072
Date       Time     Module Level  Type Description
2015-12-23 17:25:27 system warn  00515 Admin user system has logged on via
                                       SSH from 1.1.1.1:32366
2015-12-23 17:17:26 system warn  00528 SSH: Password authentication failed

虽然这个日志可以通过ssg5-serial-> get event 来删除. :)

0×04. 补丁升级


可以通过tftp和web接口来升级,具体步骤参考

http://puluka.com/home/techtalknetworking/screenoscriticalsecurityissue2015.html

0×05 参考文章:


Juniper ScreenOS backdoor: the attack demystified

http://www.pentest.guru/index.php/2015/12/21/juniper-screenos-backdoor-attack-demystified/

Juniper Networks - 2015-12 Out of Cycle Security Bulletin: ScreenOS: Multiple Security issues with ScreenOS (CVE-2015-7755) - Knowledge Base

https://kb.juniper.net/InfoCenter/index?page=content&id=JSA10713&cat=SIRT_1&actp=LIST

Juniper Follow Up

http://malwarejake.blogspot.com/2015/12/juniper-follow-up.html

CVE-2015-7755: Juniper ScreenOS Authentication Backdoor

https://community.rapid7.com/community/infosec/blog/2015/12/20/cve-2015-7755-juniper-screenos-authentication-backdoor
